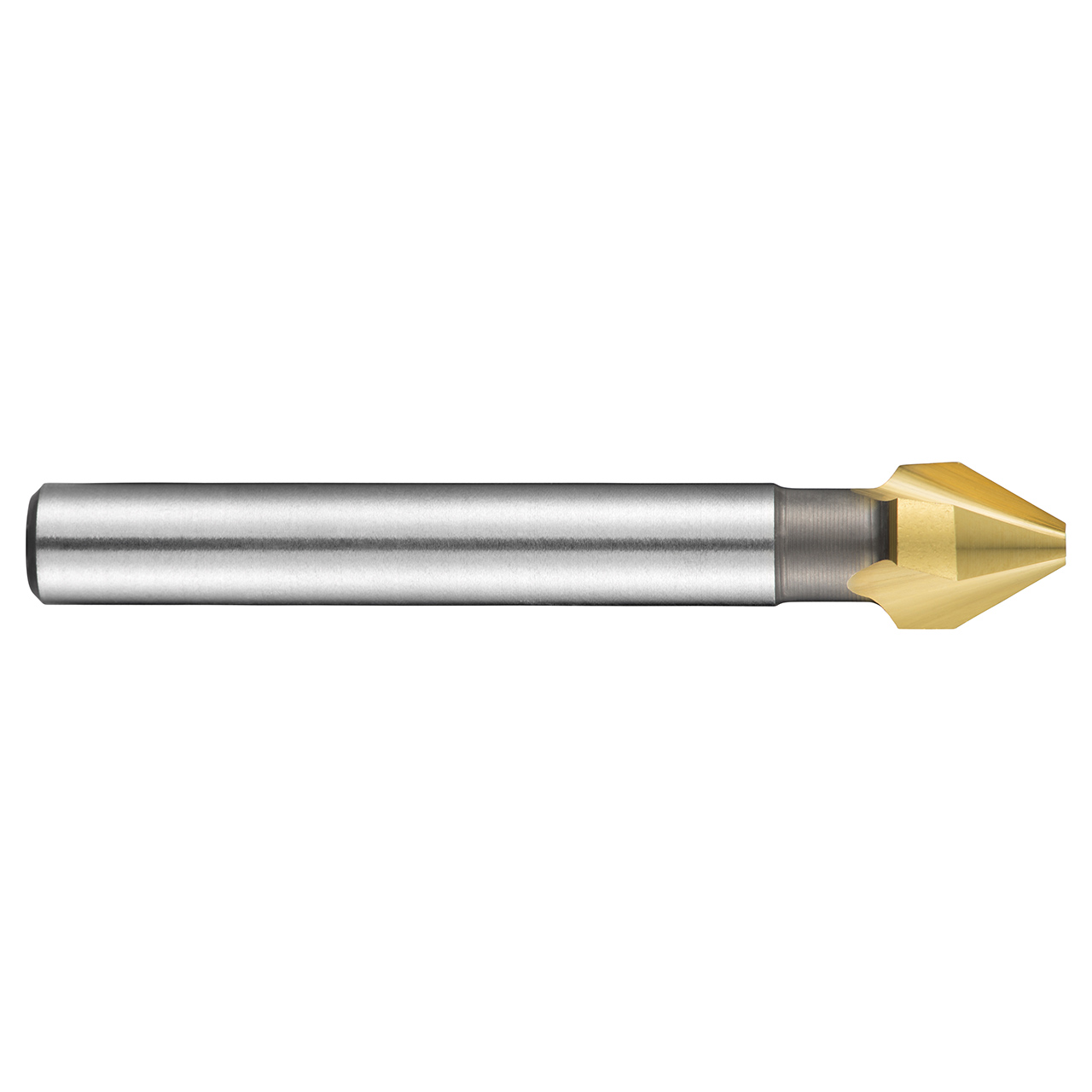

Countersink with 3-flutes, 60° chamfering angle, maximum diameter 8.00mm with an overall length of 50mm and a head length of 8.5mm and 6mm straight shank, according to DIN 334 C standard for deburring and chamfering holes with a minium hole diameter of 2.00mm, HSS with standard TiN coating for machining steel and cast steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys.
Product Specifications
| EDP Number | 0149553 |
| Flute Count | 3 |
| Connection Diameter (Inch) | 0.2362" |
| Overall Length (Inch) | 1.9685" |
| Point Angle | 60 |
| Material Code | HSS |
| Cutting Direction | Right Hand |
| Coating | TiN |
| Surface Color | Gold |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Dormer
Material:
HSS
Finish/Coating:
TiN
Number of Flutes:
3
