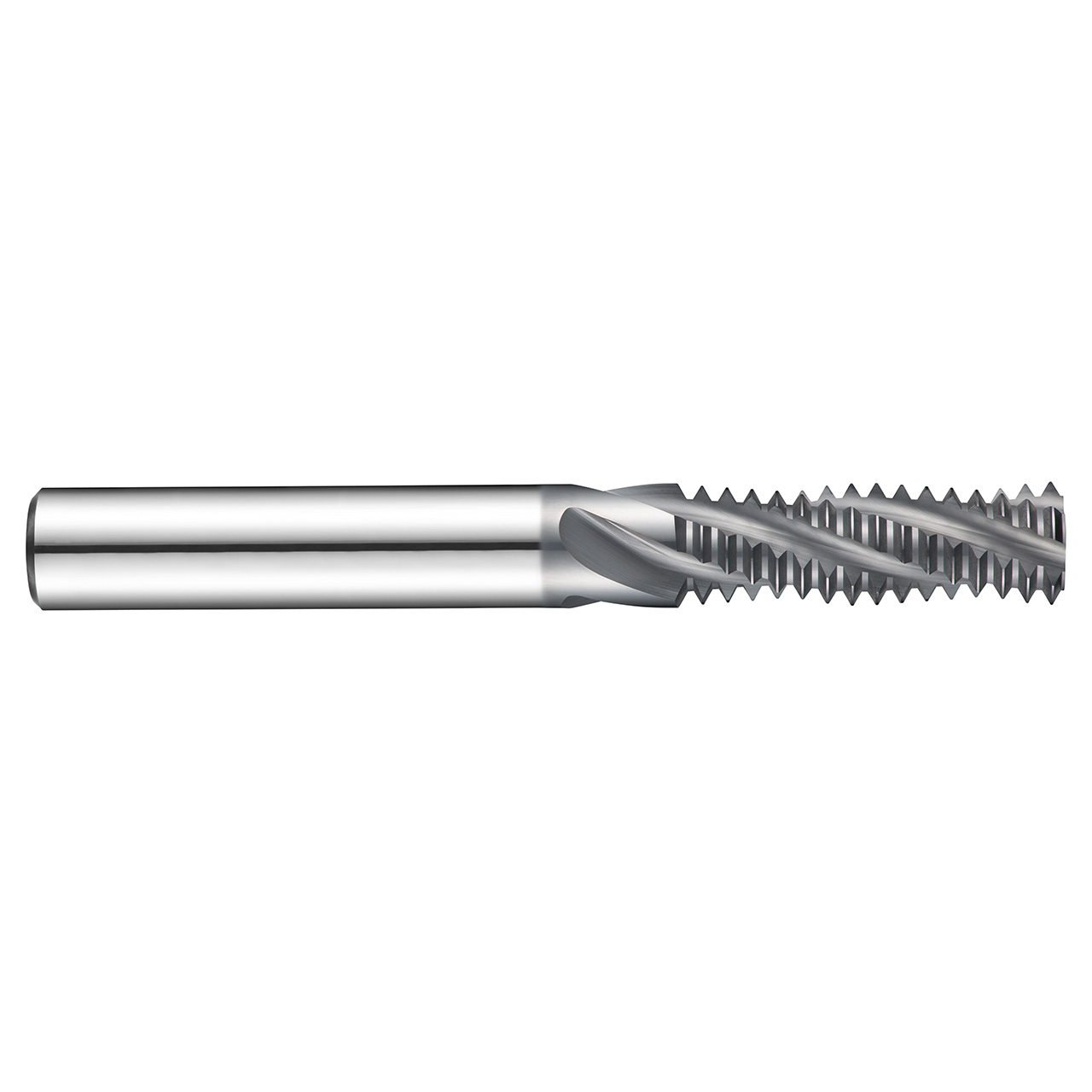

Thread milling cutter, for ISO-Metric thread ≥ M6 with 1.00mm pitch, dimensions according to DORMER standard with 3 flutes, 4.5mm cutting diameter and 6mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating, through coolant holes and 27° helix angle for milling a maximum of 13mm long right or left hand internal thread in steel and cast steel, stainless steel, cast-iron, non-ferrous metals, titanium or titanium alloys, chilled cast-iron.
Product Specifications
| Connection Diameter (Inch) | 0.2362" |
| Cutting Diameter (Inch) | 0.1772" |
| Overall Length (Inch) | 2.2441" |
| Max Depth of Cut (mm) | 13mm |
| No of Flutes | 3 |
| Flute Helix Angle | 27 |
| Thread Pitch (mm) | 1mm |
| Thread Diameter Size | M6 |
| Material Code | HM |
| Cutting Direction | Right Hand |
| Coating | Alcrona Pro |
| Surface Color | Black - Deep Purple |
| Thread Form | M-Metric coarse |
