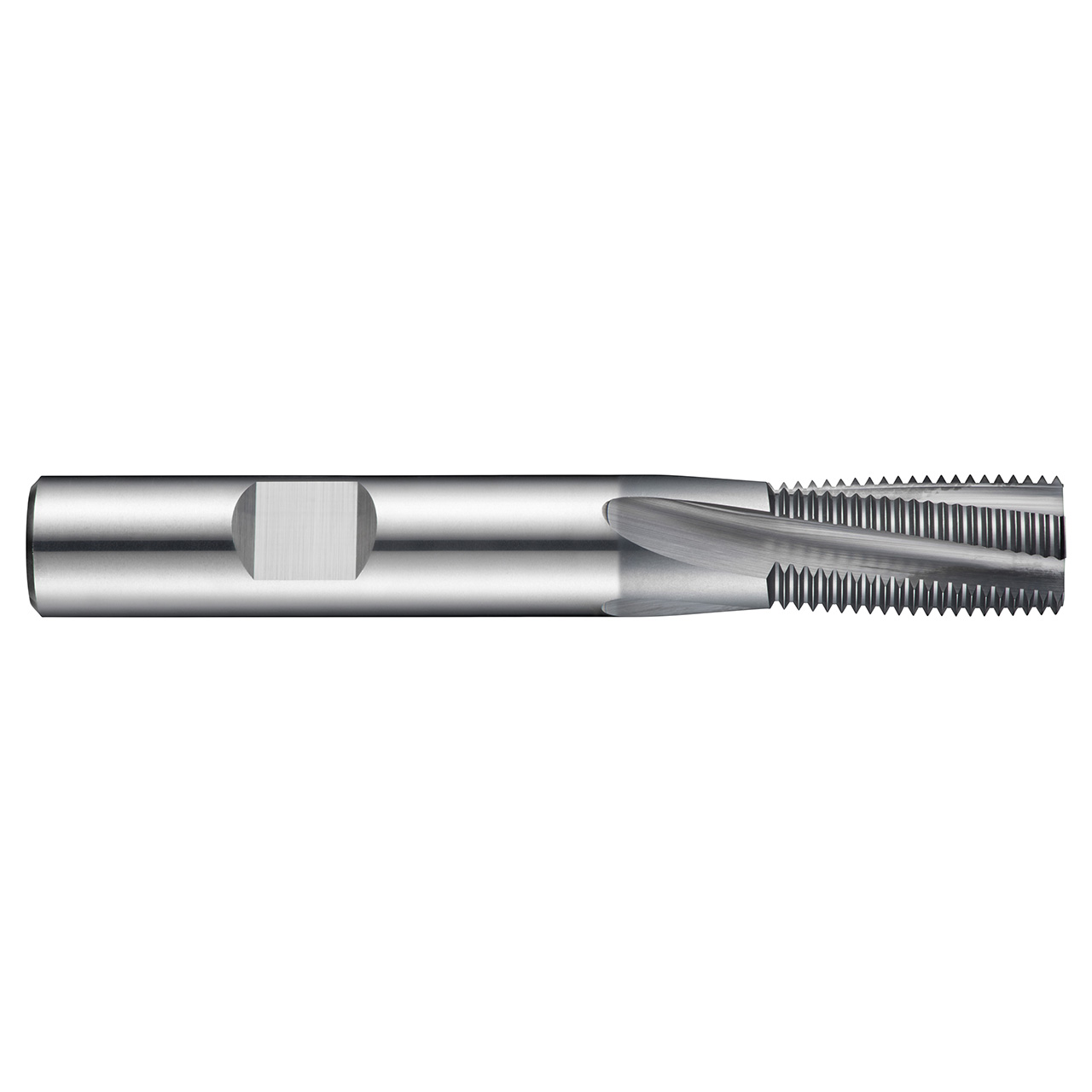

Thread milling cutter, for Unified National Fine thread ≥ UNF 1/4" with 28 TPI, dimensions according to DORMER standard with 3 flutes, 4.8mm cutting diameter and 6mm Weldon shank according to DIN 6535 HB, solid carbide with Alcrona Pro coating, through coolant holes and 10 Degree helix angle for milling a maximum of 14mm long right or left hand internal thread in steel and cast steel, stainless steel, cast-iron, non-ferrous metals, titanium or titanium alloys, chilled cast-iron.
Product Specifications
| Connection Diameter (Inch) | 0.2362" |
| Cutting Diameter (Inch) | 0.189" |
| Overall Length (Inch) | 2.2441" |
| Max Depth of Cut (mm) | 14mm |
| No of Flutes | 3 |
| Flute Helix Angle | 10 |
| Thread Diameter Size | 1/4 |
| Material Code | HM |
| Cutting Direction | Right Hand |
| Coating | Alcrona Pro |
| Surface Color | Black - Deep Purple |
| Thread Form | UNF-Unified Fine |
| Country of origin | Germany |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Related Products
Brand:
Dormer
Thread Size (Inch):
1/4"
Threads Per Inch:
28.00
Cutter Diameter (Decimal Inch):
0.1890"
Cutter Diameter (mm):
4.80mm
Shank Diameter (Decimal Inch):
0.2362"
Shank Diameter (mm):
6.00mm
Number of Flutes:
3
Finish/Coating:
Alcrona Pro
Material:
HM
Through Coolant:
Yes
