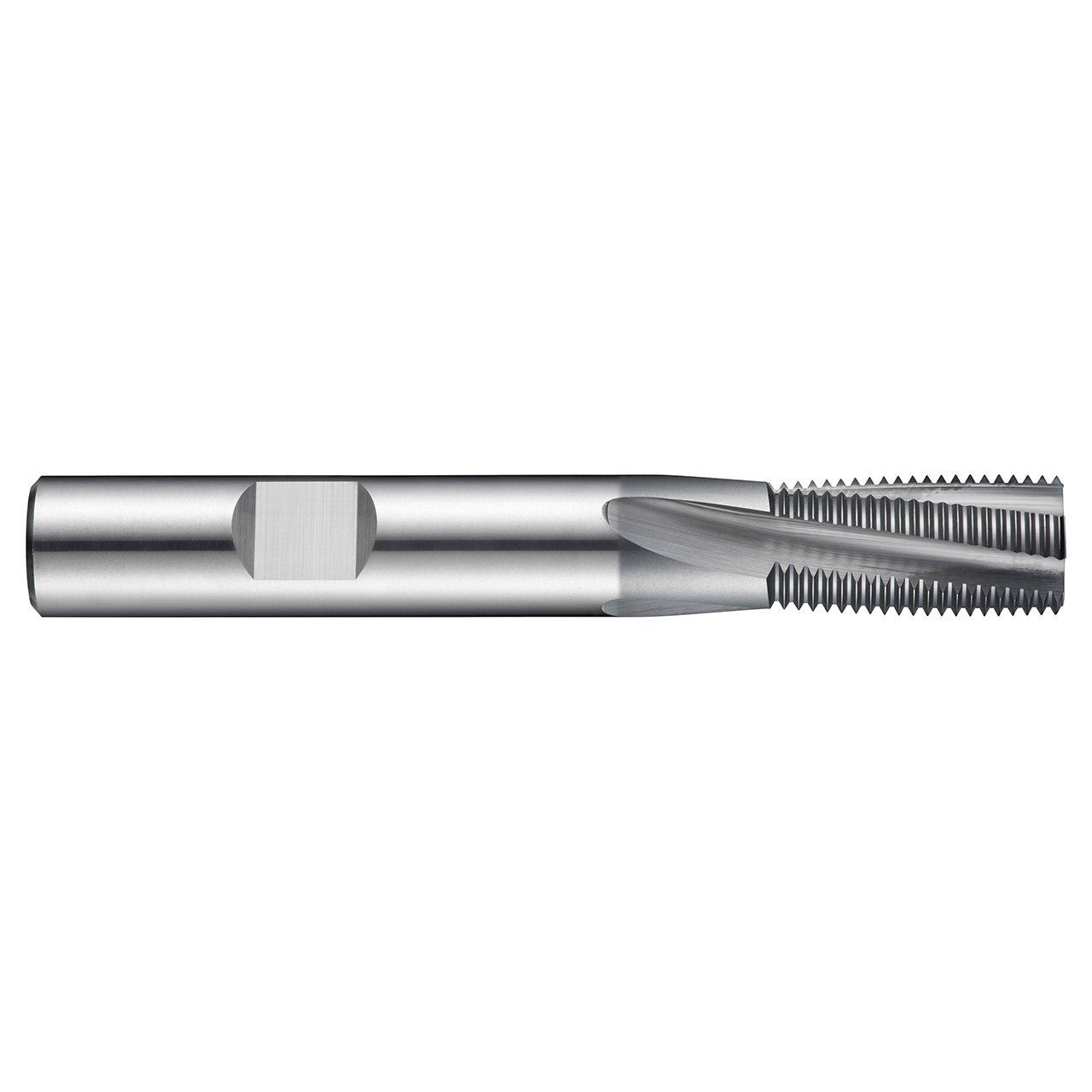

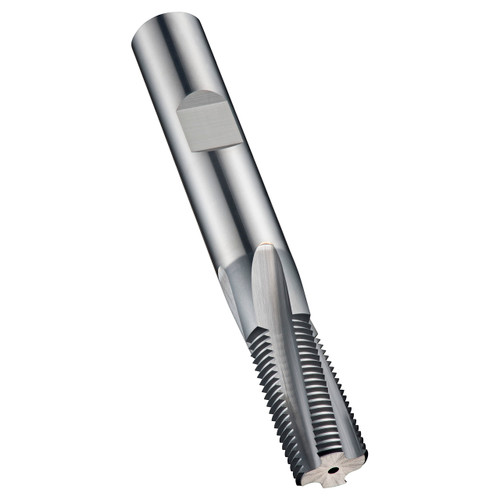

Thread milling cutter, for Unified National Fine thread ≥ UNF 3/4" with 16 TPI, dimensions according to DORMER standard with 5 flutes, 14mm cutting diameter and 14mm Weldon shank according to DIN 6535 HB, solid carbide with Alcrona Pro coating, through coolant holes and 10 Degree helix angle for milling a maximum of 32mm long right or left hand internal thread in steel and cast steel, stainless steel, cast-iron, non-ferrous metals, titanium or titanium alloys, chilled cast-iron.
Product Specifications
| Connection Diameter (Inch) | 0.5512" |
| Cutting Diameter (Inch) | 0.5512" |
| Overall Length (Inch) | 3.2677" |
| Max Depth of Cut (mm) | 32mm |
| No of Flutes | 5 |
| Flute Helix Angle | 10 |
| Thread Diameter Size | 3/4 |
| Material Code | HM |
| Cutting Direction | Right Hand |
| Coating | Alcrona Pro |
| Surface Color | Black - Deep Purple |
| Thread Form | UNF-Unified Fine |
| Country of origin | Germany |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Related Products
Brand:
Dormer
Thread Size (Inch):
3/4"
Threads Per Inch:
16.00
Cutter Diameter (Decimal Inch):
0.5512"
Cutter Diameter (mm):
14.00mm
Shank Diameter (Decimal Inch):
0.5512"
Shank Diameter (mm):
14.00mm
Number of Flutes:
5
Finish/Coating:
Alcrona Pro
Material:
HM
Through Coolant:
Yes
