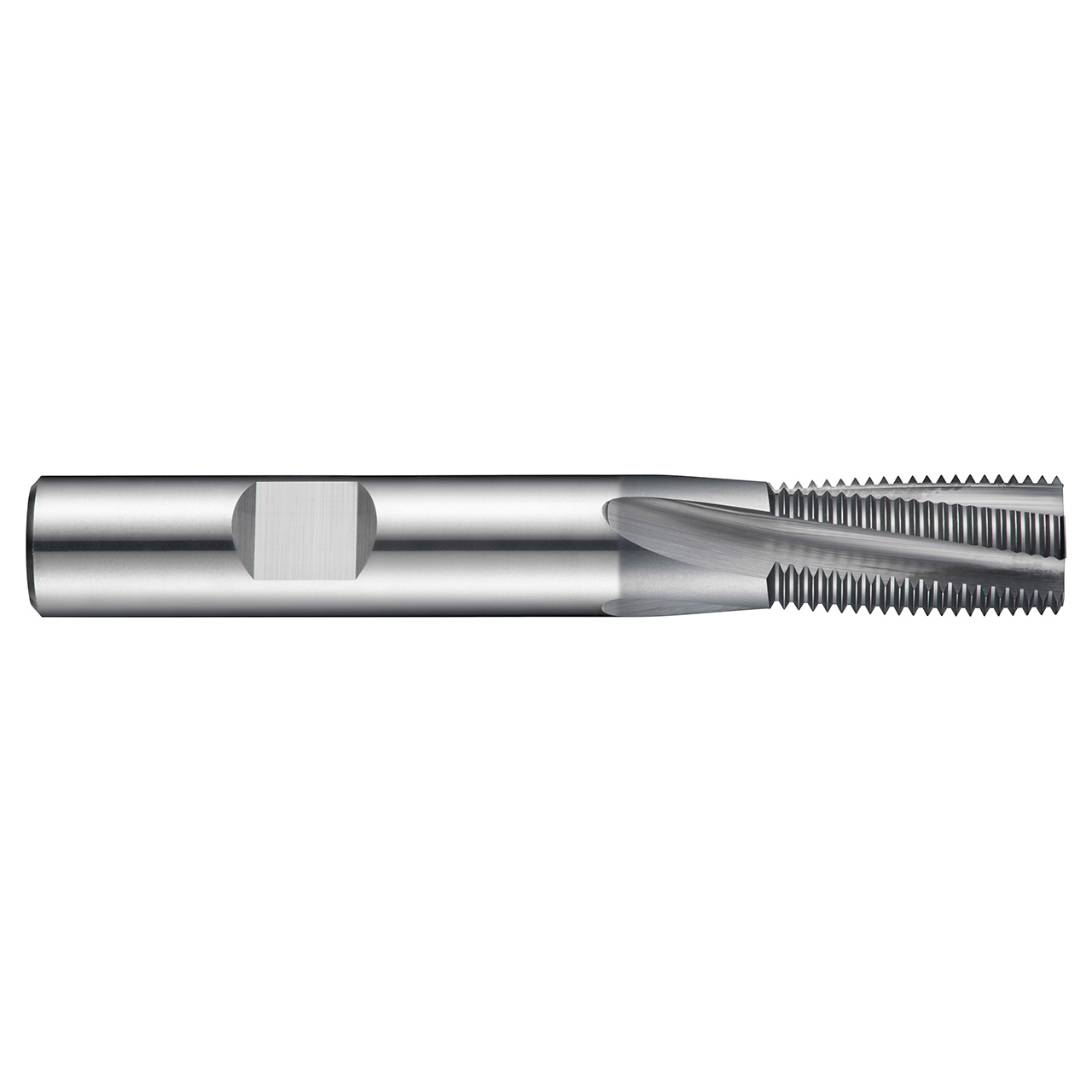

Thread milling cutter, for ISO-Metric Fine thread ≥ M12 with 1.50mm pitch, dimensions according to DORMER standard with 4 flutes, 10mm cutting diameter and 10mm Weldon shank according to DIN 6535 HB, solid carbide with Alcrona Pro coating, through coolant holes and 10° helix angle for milling a maximum of 20mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, non-ferrous metals, titanium or titanium alloys and Co-based high-temperature alloys, chilled cast-iron.
| Connection Diameter (Inch) | 0.3937" |
| Cutting Diameter (Inch) | 0.3937" |
| Overall Length (Inch) | 2.8346" |
| Max Depth of Cut (mm) | 20mm |
| No of Flutes | 4 |
| Flute Helix Angle | 10 |
| Thread Pitch (mm) | 1.5mm |
| Thread Diameter Size | M12 |
| Material Code | HM |
| Cutting Direction | Right Hand |
| Coating | Alcrona Pro |
| Surface Color | Black - Deep Purple |
| Thread Form | MF-Metric fine |
