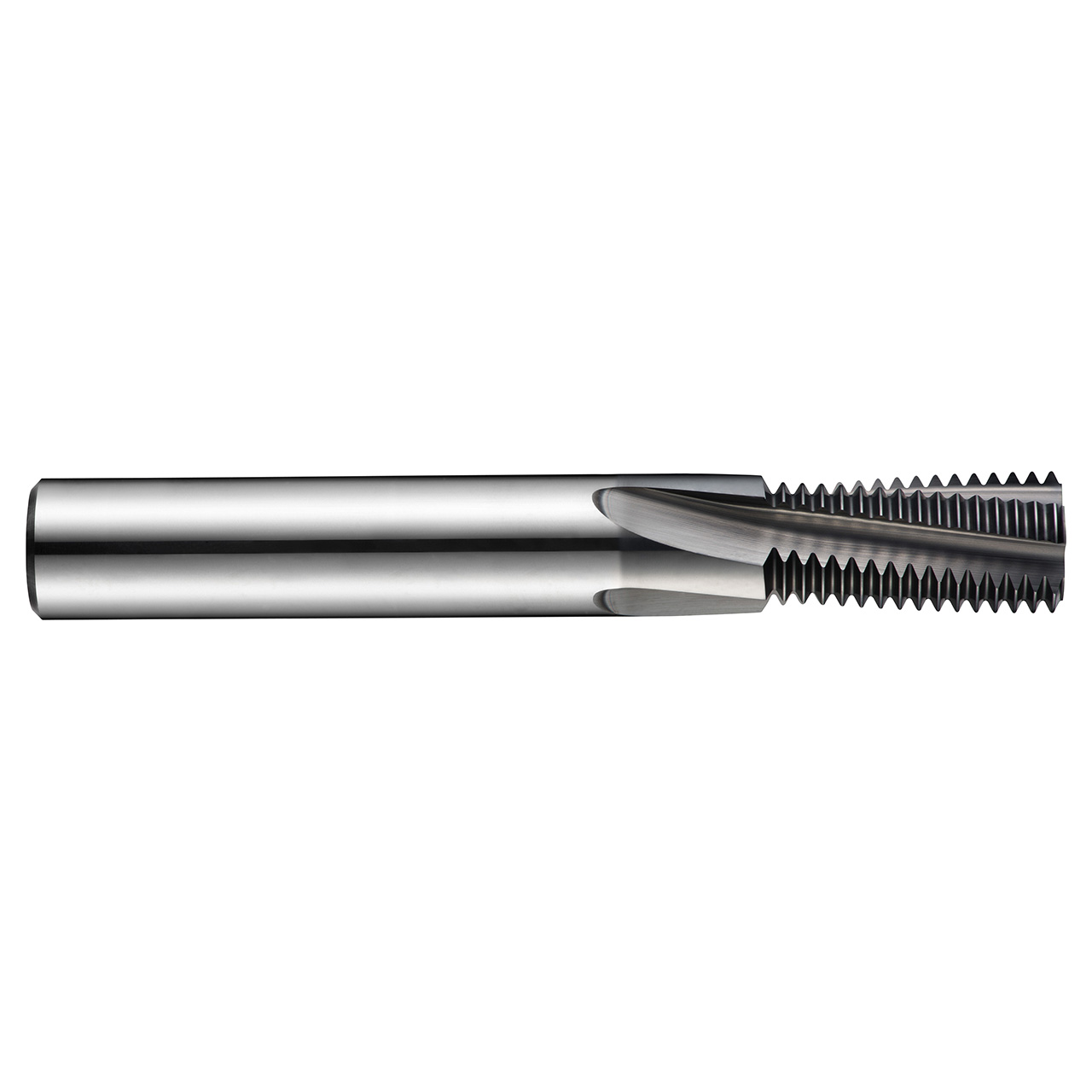

Thread milling cutter, for British Standard Pipe thread ≥ G 1'' with 11 TPI, dimensions according to DORMER standard with 6 flutes, 25mm cutting diameter and 25mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 10 Degree helix angle for milling a maximum of 45mm long right or left hand internal and external thread in steel and cast steel, stainless steel, cast-iron, non-ferrous metals, titanium or titanium alloys, chilled cast-iron.
| Connection Diameter (Inch) | 0.9843" |
| Cutting Diameter (Inch) | 0.9843" |
| Overall Length (Inch) | 4.7638" |
| Max Depth of Cut (mm) | 45mm |
| No of Flutes | 6 |
| Flute Helix Angle | 10 |
| Thread Diameter Size | 1'', 3'' |
| Material Code | HM |
| Cutting Direction | Right Hand |
| Coating | Alcrona Pro |
| Surface Color | Black - Deep Purple |
| Thread Form | G-British standard pipe fastening-G series |
| Country of origin | Germany |
