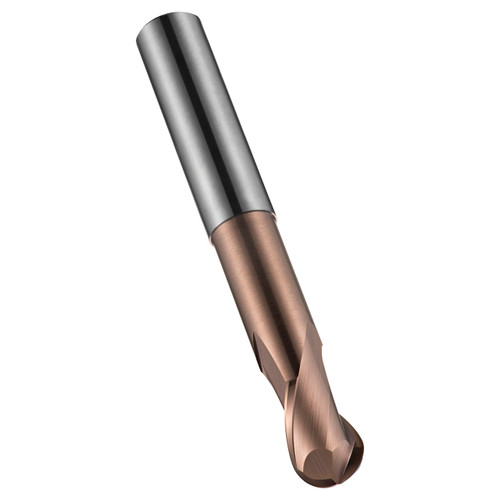

S231 premium carbide 2-flute milling cutters will give you superior performance and a longer tool life. The long reach 2-flute design makes these tools very rigid with increased strength and reduced vibration when machining in those difficult to reach areas, whilst the ball nose geometry makes the cutters perfect for high performance contouring of complex surfaces. S231 2-flute ball nose milling cutters are designed for high speed machining in difficult to machine materials such as heat resistant alloys, supported by the aluminium titanium nitride coating which improves performance when milling those materials and also extends the tool life.
Usable Length (mm) | 14mm |
Max Depth of Cut (mm) | 4mm |
Connection Diameter (Inch) | 0.1575" |
Cutting Diameter (Inch) | 0.0787" |
Overall Length (Inch) | 2.9528" |
Material Code | HM |
Radial Rake Angle | 3 |
No of Flute | 2 |
Flute Helix Angle | 30 |
Corner Radius (mm) | 1mm |
Coating | TiSiN |
Surface Color | Rose Gold |
