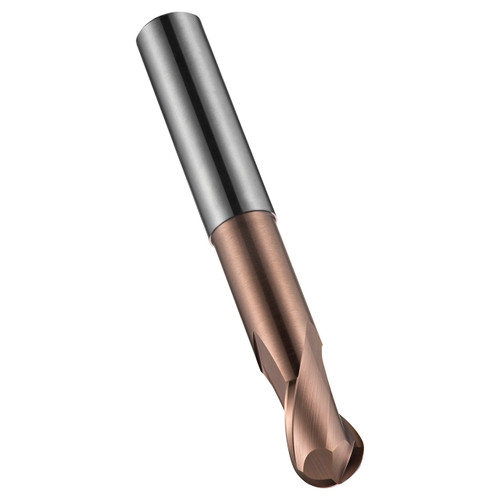

Dormer S2315.0 | 0.1969" Diameter x 2.3622" OAL 2 Flute TiSiN Coated Ball End Mill

$69.00
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25140837
UPC:
7320760680414
Weight:
0.73 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

S231 premium carbide 2-flute milling cutters will give you superior performance and a longer tool life. The long reach 2-flute design makes these tools very rigid with increased strength and reduced vibration when machining in those difficult to reach areas, whilst the ball nose geometry makes the cutters perfect for high performance contouring of complex surfaces. S231 2-flute ball nose milling cutters are designed for high speed machining in difficult to machine materials such as heat resistant alloys, supported by the aluminium titanium nitride coating which improves performance when milling those materials and also extends the tool life.


Product Specifications
Usable Length (mm)32mm
Max Depth of Cut (mm)9mm
Connection Diameter (Inch)0.1969"
Cutting Diameter (Inch)0.1969"
Overall Length (Inch)2.3622"
Material CodeHM
Radial Rake Angle3
No of Flute2
Flute Helix Angle30
Corner Radius (mm)2.5mm
CoatingTiSiN
Surface ColorRose Gold
