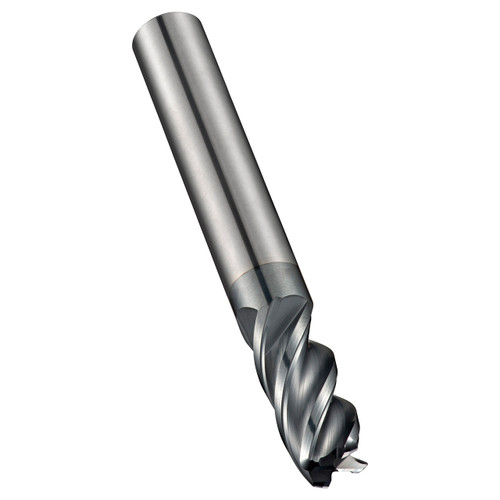

Dormer S2626.0XR0.3 | 0.2362" Diameter x 2.2441" OAL x 0.3mm Radius 4 Flute AlCrN Coated Corner Radius End Mill

$63.60
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25141258
UPC:
7320760684801
Weight:
0.95 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

S262 4-flute milling cutters have a medium length flute with corner radius for use in standard profile milling where a fillet radius is required and have a 40 degree helix with unequal flute divide to reduce vibration and improve surface finish when used in CNC machines. The premium carbide used in manufacture will ensure great performance and extended tool life-further enhanced by the aluminium chrome nitride coating which also improves performance when milling difficult to machine materials.


Product Specifications
Max Depth of Cut (mm)16mm
Connection Diameter (Inch)0.2362"
Cutting Diameter (Inch)0.2362"
Overall Length (Inch)2.2441"
Material CodeHM
Radial Rake Angle4
No of Flute4
Flute Helix Angle40
Corner Radius (mm)0.3mm
CoatingAlCrN
Surface ColorBlack-Deep Purple
