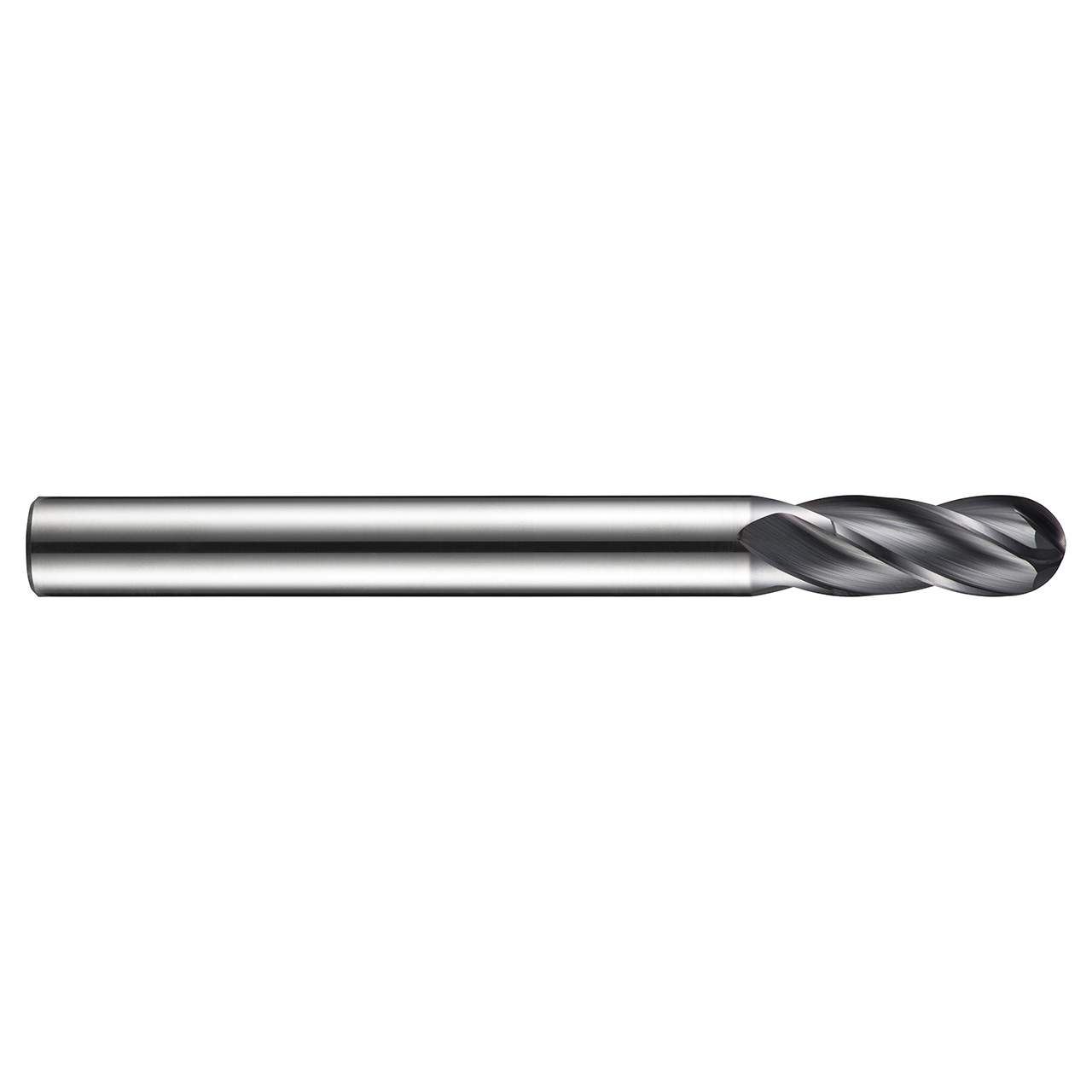

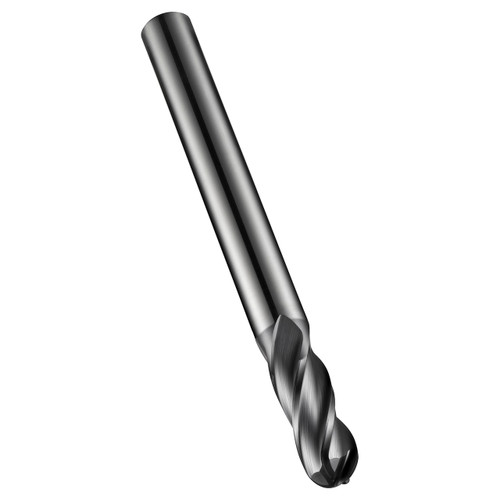

For contour milling in steels, cast iron and stainless steels, S511 4-flute milling cutters have a ball nose geometry for high performance contouring of complex surfaces. They are manufactured from premium carbide material which gives you superior performance and extended tool life and have a long, 4-flute design, giving high rigidity for increased strength and reduced vibration in deeper applications. S511 ball nose milling cutters have X-CEED coating which increases the life of the tool and improves performance when milling difficult to machine materials.
| Max Depth of Cut (mm) | 8mm |
| Connection Diameter (Inch) | 0.2362" |
| Cutting Diameter (Inch) | 0.1181" |
| Overall Length (Inch) | 3.1496" |
| Material Code | HM |
| Radial Rake Angle | 10 |
| No of Flute | 4 |
| Flute Helix Angle | 30 |
| Corner Radius (mm) | 1.5mm |
| Coating | X-CEED |
| Surface Color | Black-Deep Purple |
| Country of origin | Italy |
