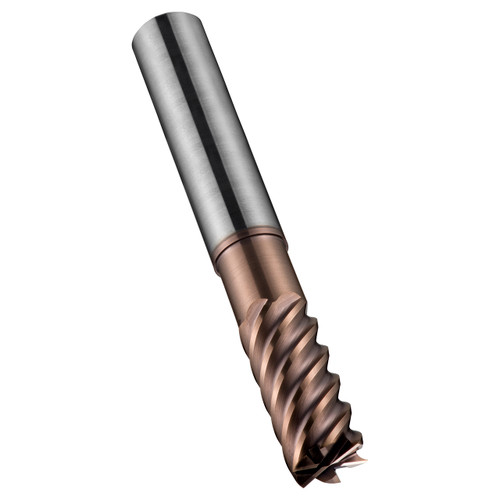

S525 carbide multi-flute milling cutters are designed specifically for milling in non-ferrous materials such as aluminium. For high performance profiling on CNC machines, the tools come with a 50 degree helix, whilst the multi-flute feature provides high rigidity for finishing of profiles. With a titanium silicon nitride coating for longer tool life and improved performance milling difficult to machine materials, the cutters are manufactured from premium carbide for great results and to further extend tool life.
| Usable Length (mm) | 32mm |
| Max Depth of Cut (mm) | 22mm |
| Connection Diameter (Inch) | 0.3937" |
| Cutting Diameter (Inch) | 0.3937" |
| Overall Length (Inch) | 2.7559" |
| Material Code | HM |
| Radial Rake Angle | -26 |
| No of Flute | 6 |
| Flute Helix Angle | 50 |
| Coating | TiSiN |
| Surface Color | Rose Gold |
