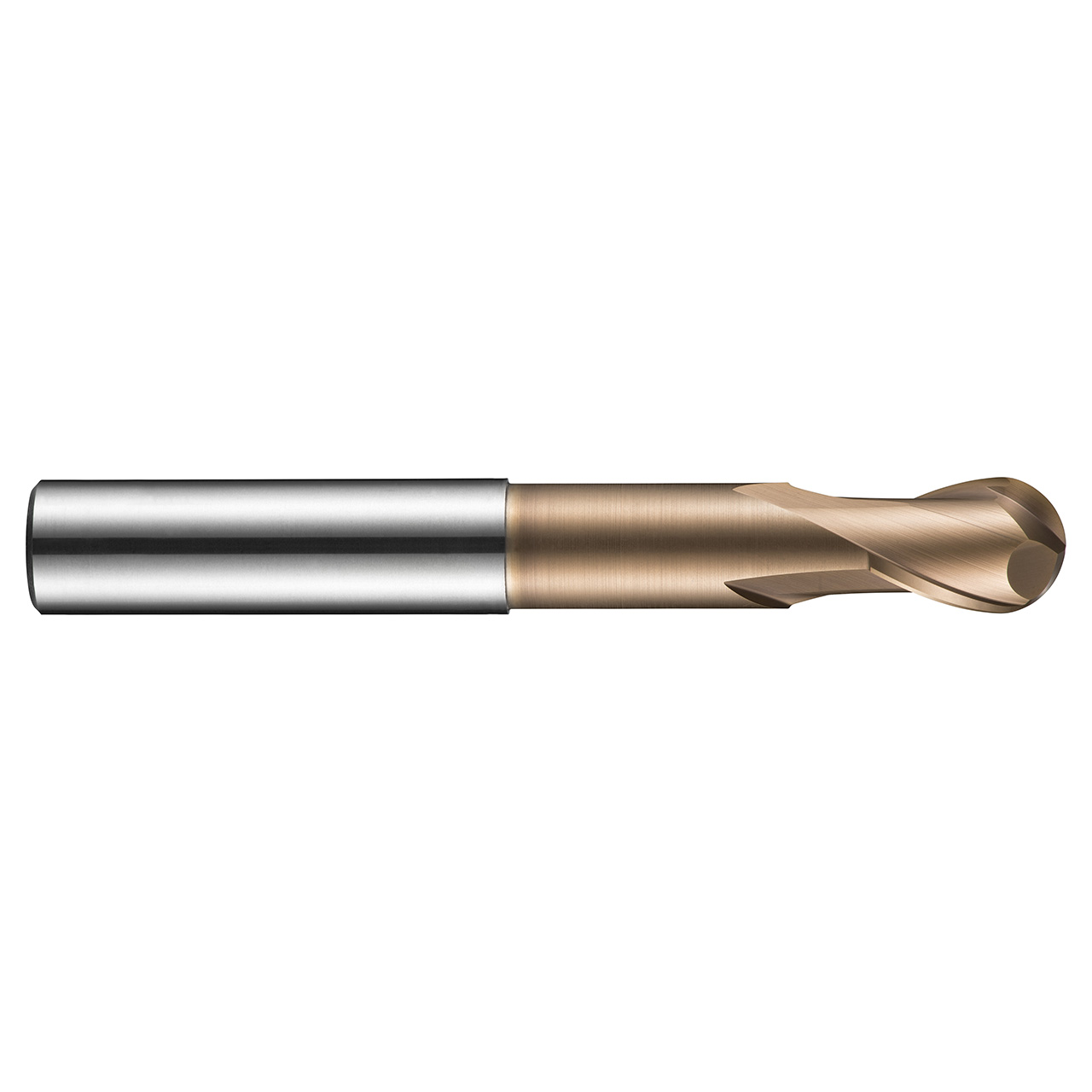

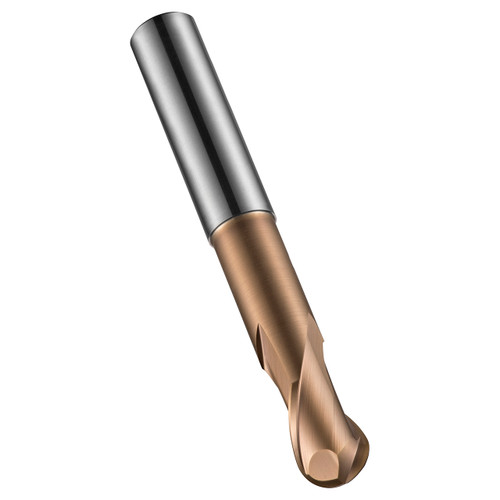

Dormer S5312.0XD4 | 0.0787" Diameter x 2.9528" OAL 2 Flute TiSiN Coated Ball End Mill

$65.40
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25140818
UPC:
7320760680216
Weight:
0.63 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

S531 2-flute milling cutters from Dormer come with ball nose geometry for high performance contouring of complex surfaces, and a long reach 2-flute design, providing high rigidity for increased strength and reduced vibration in areas which are difficult to reach. They have a titanium silicon nitride coating which increases the life of the tools and improves performance milling difficult to machine materials. S531 ball nose milling cutters are specifically made for high speed machining in hardened tool steels up to 63HRC and are manufactured from premium carbide for great performance.


Product Specifications
Usable Length (mm)14mm
Max Depth of Cut (mm)4mm
Connection Diameter (Inch)0.1575"
Cutting Diameter (Inch)0.0787"
Overall Length (Inch)2.9528"
Material CodeHM
Radial Rake Angle-10
No of Flute2
Flute Helix Angle30
Corner Radius (mm)1mm
CoatingTiSiN
Surface ColorRose Gold
