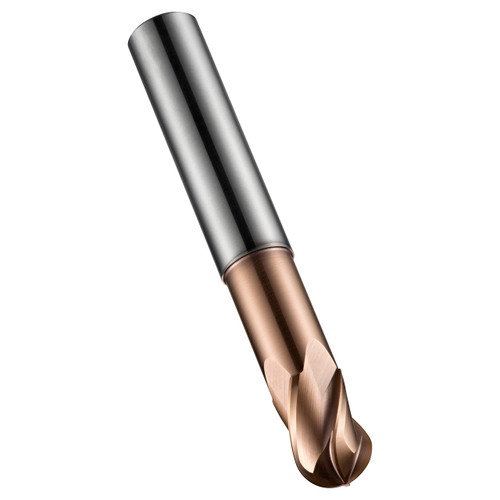

Part of Dormer's range of carbide milling cutters, S534 slot drills have ball nose geometry designed for high performance contouring of complex surfaces and are specifically for high speed machining in hardened tool steels up to 63HRC. The short, 4-flute design with high rigidity, gives increased strength and reduces vibration. Manufactured from premium carbide, S534 ball nose slot drills will give you superior performance and longer tool life and the titanium silicon nitride coating will further extend tool life and improve performance when milling difficult to machine materials.
| Usable Length (mm) | 20mm |
| Max Depth of Cut (mm) | 10mm |
| Connection Diameter (Inch) | 0.2362" |
| Cutting Diameter (Inch) | 0.2362" |
| Overall Length (Inch) | 1.9685" |
| Material Code | HM |
| Radial Rake Angle | -10 |
| No of Flute | 4 |
| Flute Helix Angle | 30 |
| Corner Radius (mm) | 3mm |
| Coating | TiSiN |
| Surface Color | Rose Gold |
