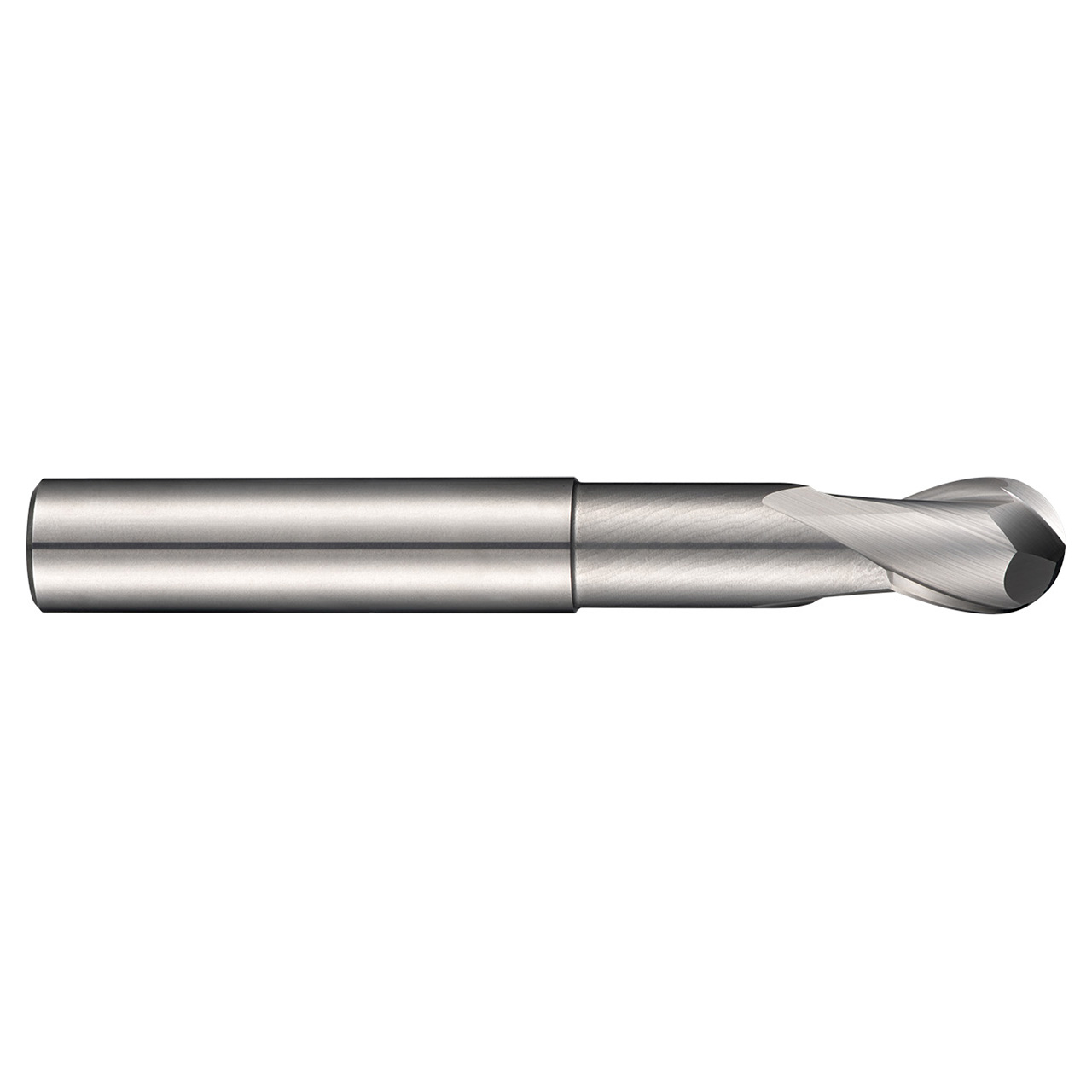

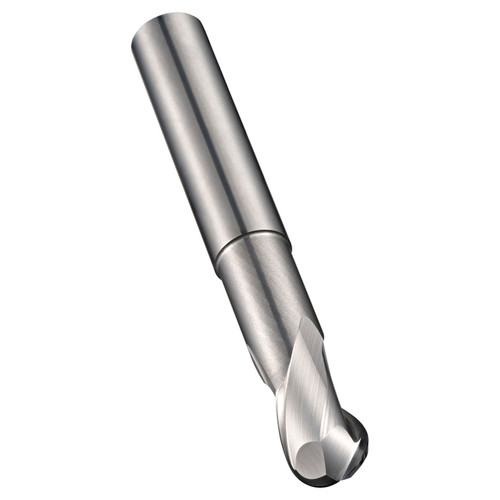

Dormer S6294.0 | 0.1575" Diameter x 2.2441" OAL 2 Flute Bright Coated Ball End Mill

$56.16
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25140874
UPC:
7320760680803
Weight:
0.84 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

S629 2-flute milling cutters from Dormer are manufactured from premium carbide with superior performance and extended tool life. The bright polished finish prevents workpiece material from sticking to the cutting edges of the tool to ensure you get a cleaner, more accurate result. The short, 2-flute design makes for a highly rigid tool for increased strength and reduced vibration, whilst the ball nose geometry makes them ideal for high performance contouring of complex surfaces. The S629 ball nose milling cutter is specifically intended for milling in non-ferrous materials such as aluminium.


Product Specifications
Usable Length (mm)20mm
Max Depth of Cut (mm)6mm
Connection Diameter (Inch)0.2362"
Cutting Diameter (Inch)0.1575"
Overall Length (Inch)2.2441"
Material CodeHM
Radial Rake Angle15
No of Flute2
Flute Helix Angle30
Corner Radius (mm)2mm
CoatingBright
Surface ColorBright Silver
