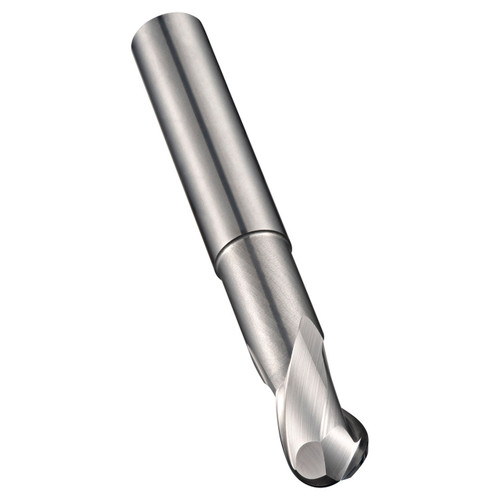

Extra short series Ball-nose end mill with 2 flutes, diameter 2mm with 1.6mm length of cut, 60mm overall length, 18mm reach with neck relief and 1mm full profile radius, according to DORMER standard with a 4mm plain shank, solid carbide with bright finish, 30 Degree helix and 11 Degree rake angle for copy milling in non-ferrous metals.
| Usable Length (mm) | 18mm |
| Max Depth of Cut (mm) | 1.6mm |
| Connection Diameter (Inch) | 0.1575" |
| Cutting Diameter (Inch) | 0.0787" |
| Overall Length (Inch) | 2.3622" |
| Material Code | HM |
| Radial Rake Angle | 11 |
| No of Flute | 2 |
| Flute Helix Angle | 30 |
| Corner Radius (mm) | 1mm |
| Coating | Bright |
| Surface Color | Bright Silver |
| Country of origin | Malaysia |
