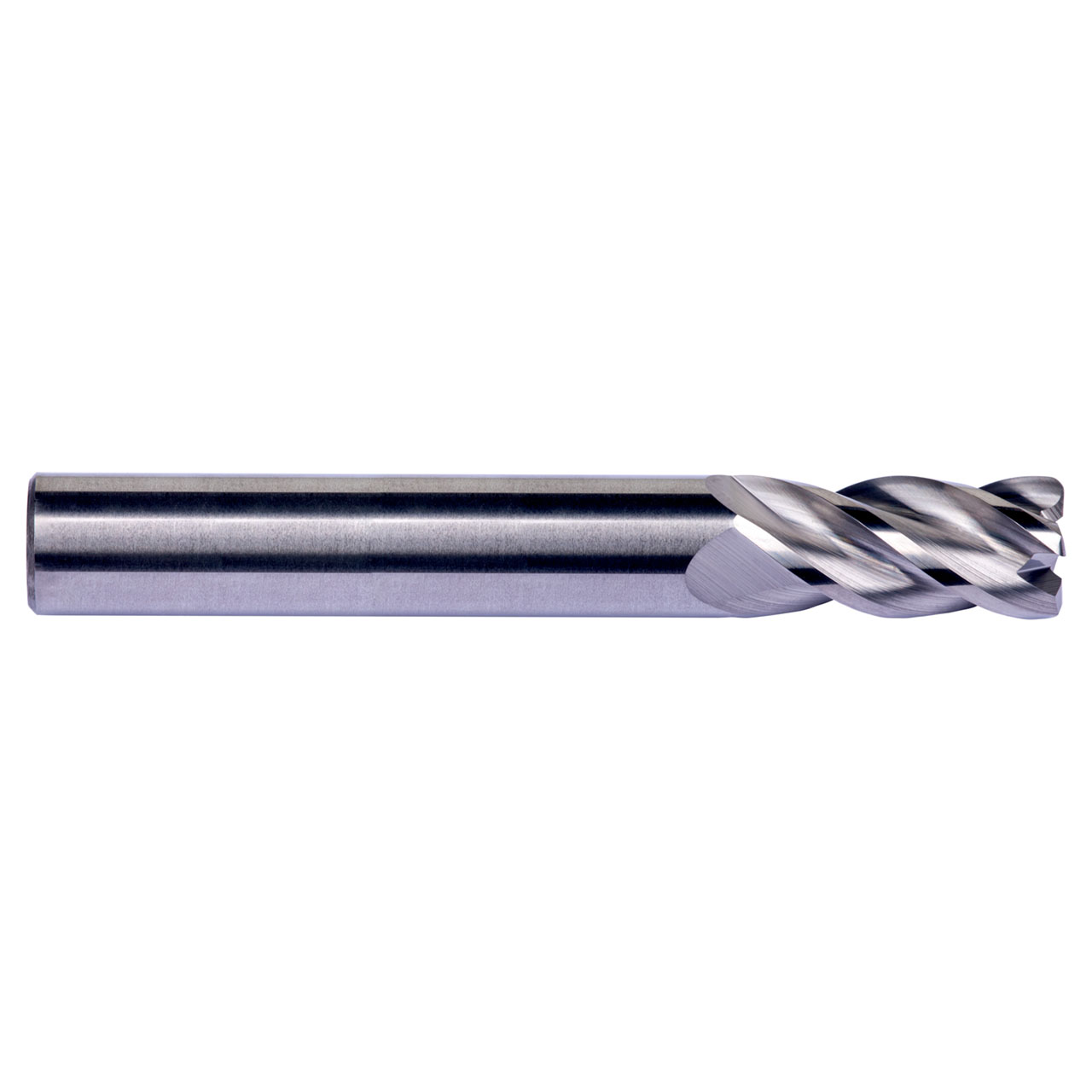

With a corner radius to reduce chipping and improve tool life, S622 milling cutters from Dormer have a positive geometry giving smooth cutting for high performance milling of non-ferrous materials. They are capable of slotting, ramping, plunging and contouring, and will give clean and accurate results thanks to the bright finish which prevents workpiece material from sticking to the cutting edges of the tool and also reduces friction. S662 cutters come with a differential pitch to reduce chatter and vibrations for improved surface finish and tool life.
Max Depth of Cut (mm) | 15mm |
Connection Diameter (Inch) | 0.2362" |
Cutting Diameter (Inch) | 0.1969" |
Overall Length (Inch) | 2.2441" |
Material Code | HM |
Radial Rake Angle | 10 |
No of Flute | 4 |
Flute Helix Angle | 40 |
Corner Radius (mm) | 0.5mm |
Coating | Bright |
Surface Color | Bright Silver |
