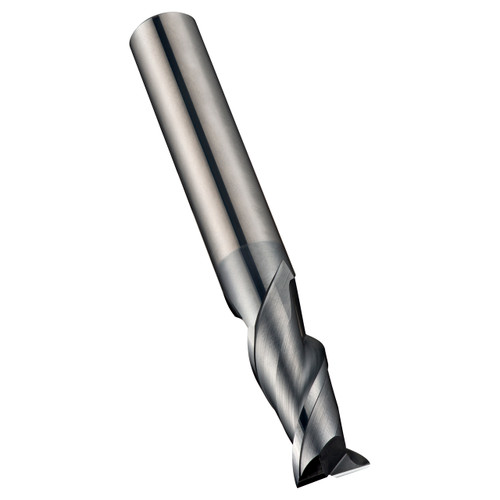

Dormer S71012.0 | 0.4724" Diameter x 2.9528" OAL 2 Flute AlCrN Coated Square End Mill

$111.00
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25141319
UPC:
7320760685419
Weight:
3.77 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

S710 2-flute milling cutters are very versatile and can be used for plunging, ramping and profile milling in steels, stainless steels and cast iron. They have an aluminium chrome nitride coating which increases the life of the tools and gives improved performance when milling difficult to machine materials. Manufactured from premium carbide to further extend tool life and give you great performance, they have a medium length flute design which gives the high rigidity needed for milling standard slots. S710 2-flute milling cutters come with a 40 degree helix, designed to give you high performance slotting on CNC machines.


Product Specifications
Max Depth of Cut (mm)25mm
Connection Diameter (Inch)0.4724"
Cutting Diameter (Inch)0.4724"
Overall Length (Inch)2.9528"
Material CodeHM
Radial Rake Angle10
No of Flute2
Flute Helix Angle40
CoatingAlCrN
Surface ColorBlack-Deep Purple
