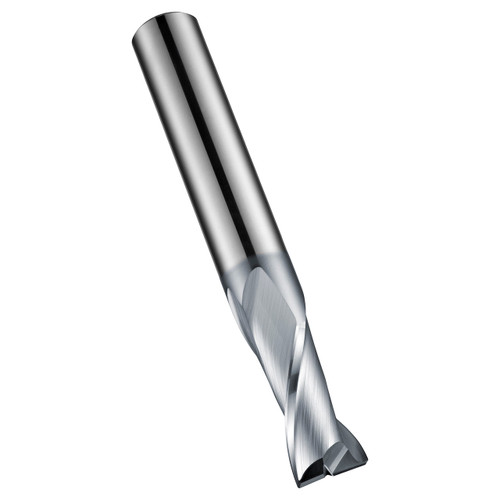

Dormer 5983505 | 16.00mm Drill Size x 16.00mm Shank x 26.00mm Maximum Depth of Cut x 92.00mm OAL x 28 Degree Helix Angle 2 Flute AlCrN Coated HM S812HA Slot Drill

SKU: 10114494 Weight: 0.51 LBS Minimum Purchase: 1 unit
UPC: 7320760641965
$353.00 $211.80
(You save $141.20)
Shipping: Calculated at Checkout

About This Item

S812HA 2-flute milling cutters are part of Dormer's extensive range of carbide cutters, being manufactured from premium carbide with the superior performance and longer tool life that brings. The special Alcrona coating further extends the tool life and is designed particularly for machining those difficult to machine materials. The cutters are capable of machining stainless steels, steels, cast iron and non-ferrous materials, and can be used for plunging, ramping and profile milling. S812HA 2-flute slot drills have a medium length flute for increased rigidity when milling standard slots, whilst the accurate diameter means they are capable of milling standard keyway slots to a P9 tolerance.


Product Specifications
Max Depth of Cut (mm)26mm
Connection Diameter (Inch)0.6299"
Cutting Diameter (Inch)0.6299"
Overall Length (Inch)3.622"
Material CodeHM
Radial Rake Angle9
No of Flute2
Flute Helix Angle28
Corner Chamfer Angle45
Corner Chamfer Width (mm)0.2mm
CoatingAlCrN
Surface ColorBlack-Deep Purple
Country of originItaly
