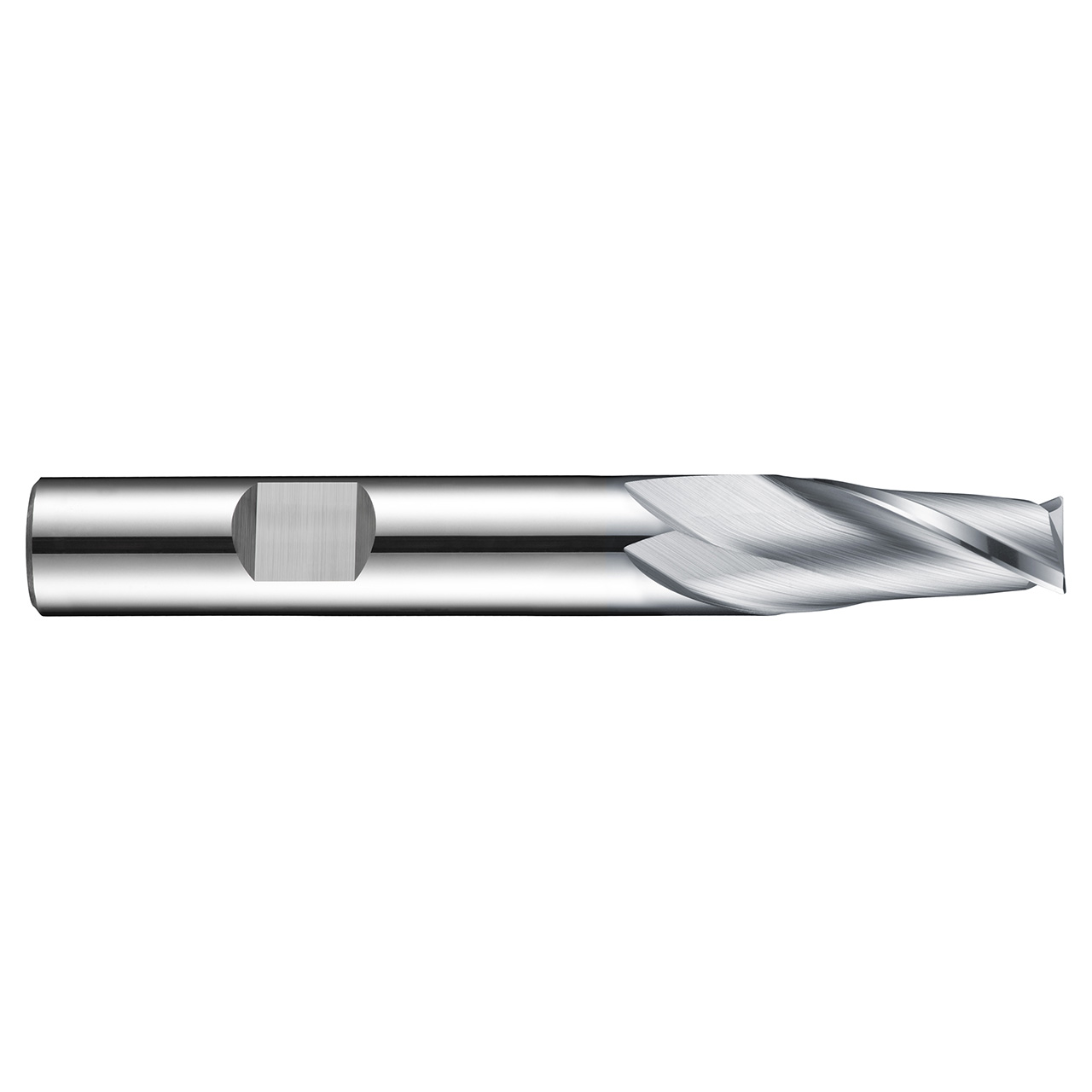

S812HB 2-flute milling cutters are manufactured from premium carbide for superior performance and extended tool life. The high rigidity of the medium length flute means they are great for milling standard keyway slots and are capable of achieving P9 tolerance, thanks to the accurate diameter. The special Alcrona coating makes the tools perfect for milling materials which are difficult to machine and further improves the tool life. The versatility of S812HB 2-flute slot drills means they can be used for plunging, ramping and profile milling, and are suitable for milling steels, cast iron, non-ferrous materials and stainless steels.
Max Depth of Cut (mm) | 7mm |
Connection Diameter (Inch) | 0.2362" |
Cutting Diameter (Inch) | 0.1378" |
Overall Length (Inch) | 2.2441" |
Material Code | HM |
Radial Rake Angle | 9 |
No of Flute | 2 |
Flute Helix Angle | 28 |
Corner Chamfer Angle | 45 |
Corner Chamfer Width (mm) | 0.08mm |
Coating | AlCrN |
Surface Color | Black-Deep Purple |
