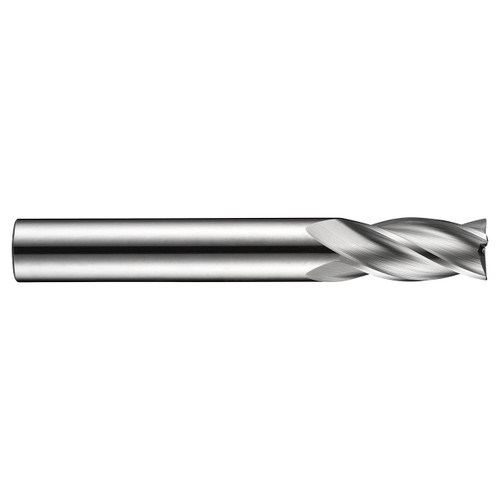

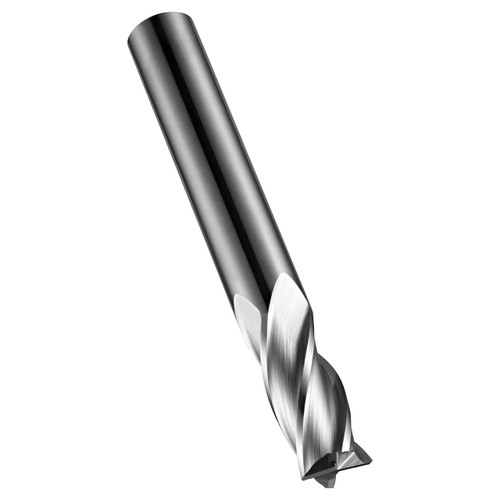

S904 4-flute milling cutters from Dormer's extensive range are manufactured from premium carbide for extended tool life and superior performance. They are an economical range of cutters for general milling of slots on most types of machines and have a sturdy medium length flute design, good for standard profile milling. The tools have a bright finish which will ensure a clean and accurate result by preventing workpiece material from sticking to the cutting edges of the tool. S904 4-flute end mills can be used for ramping, plunging and profile milling in a range of materials, including cast iron, stainless steels and steels.
Max Depth of Cut (mm) | 22mm |
Connection Diameter (Inch) | 0.3937" |
Cutting Diameter (Inch) | 0.3937" |
Overall Length (Inch) | 2.8346" |
Material Code | HM |
Radial Rake Angle | 12 |
No of Flute | 4 |
Flute Helix Angle | 30 |
Corner Chamfer Angle | 45 |
Corner Chamfer Width (mm) | 0.2mm |
Coating | Bright |
Surface Color | Bright Silver |
