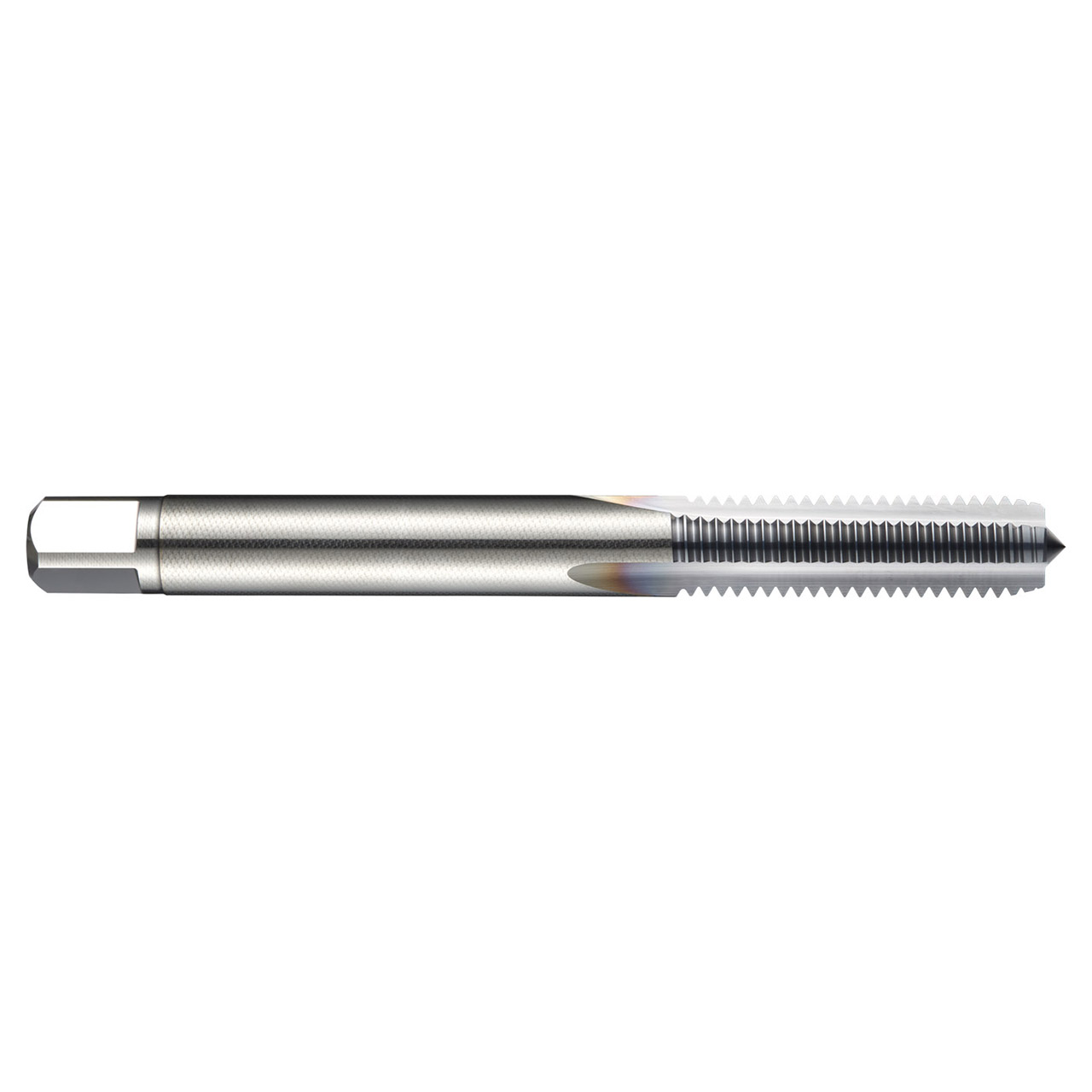

Straight flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M6 with 1.00mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 6.0mm shank and 4.9mm square drive, solid carbide with TiCN coating for 2xD through or blind hole threading in chilled or hardened steel <55HRC.
Product Specifications
| Connection Diameter (Inch) | 0.2362" |
| Overall Length (Inch) | 3.1496" |
| Clamping Width (mm) | 4.9mm |
| No of Flutes | 3 |
| Usable Length (mm) | 30mm |
| Thread Pitch (mm) | 1mm |
| Clamping Length | 8 |
| Thread Diameter Size | 6 |
| Threading Length (mm) | 19mm |
| Material Code | HM |
| Thread Tolerance Class | 6H |
| Cutting Direction | Right Hand |
| Coating | TiCN |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Purple |
| Thread Form | M-Metric coarse |
