Product Specifications
| EDP Number | 99007 |
| Tool Holder Size | 5-25-L |
| Minimum Bore Diameter (mm) | 13.5mm |
| Minimum Bore Diameter (Inch) | 0.531" |
| Stem Diameter (mm) | 12mm |
| Stem Diameter (Inch) | 0.472" |
| Stem Length (mm) | 66mm |
| Stem Length (Inch) | 2.598" |
| Overall Length (mm) | 165mm |
| Overall Length (Inch) | 6.496" |
| Centering Plate | CP-1 |
| Mounting Screw | MS-1 |
| Driver | T08 |
| Through Tool Coolant | Yes |

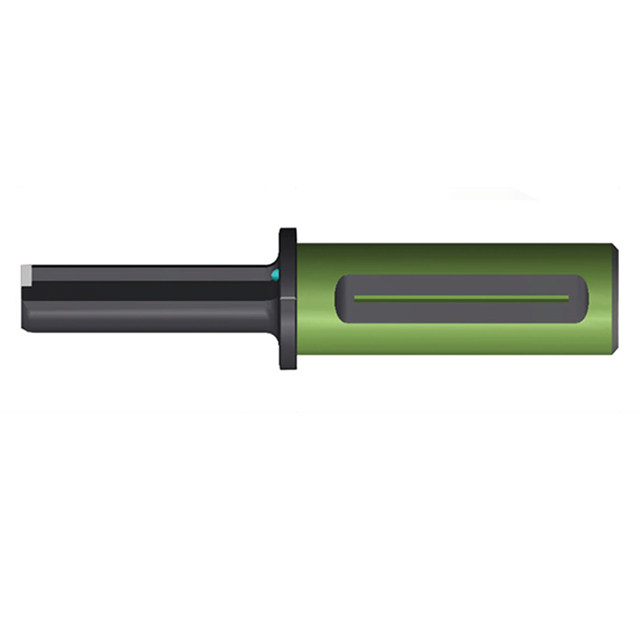

| Product Type | Indexable Broaching Toolholder |
