Product Specifications
| EDP Number | 99009 |
| Tool Holder Size | 6-25-L |
| Minimum Bore Diameter (mm) | 18mm |
| Minimum Bore Diameter (Inch) | 0.709" |
| Stem Diameter (mm) | 16mm |
| Stem Diameter (Inch) | 0.63" |
| Stem Length (mm) | 81mm |
| Stem Length (Inch) | 3.189" |
| Overall Length (mm) | 182mm |
| Overall Length (Inch) | 7.087" |
| Centering Plate | CP-2 |
| Mounting Screw | MS-2 |
| Driver | T15 |
| Through Tool Coolant | Yes |

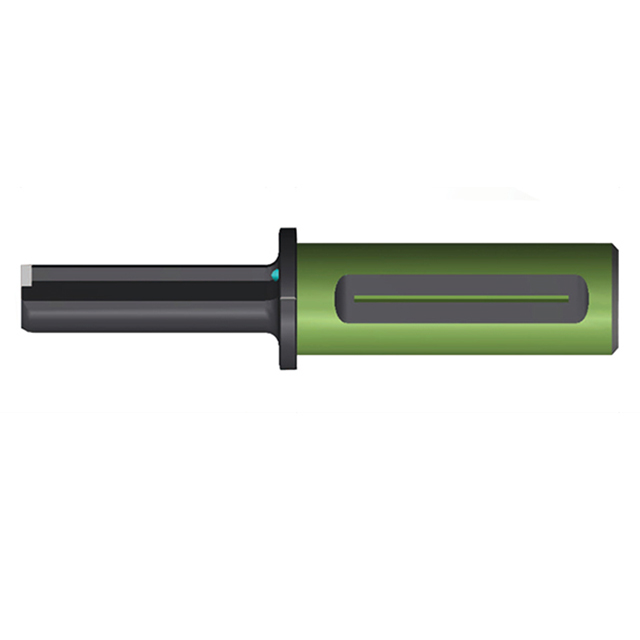

| Product Type | Indexable Broaching Toolholder |
