Features:

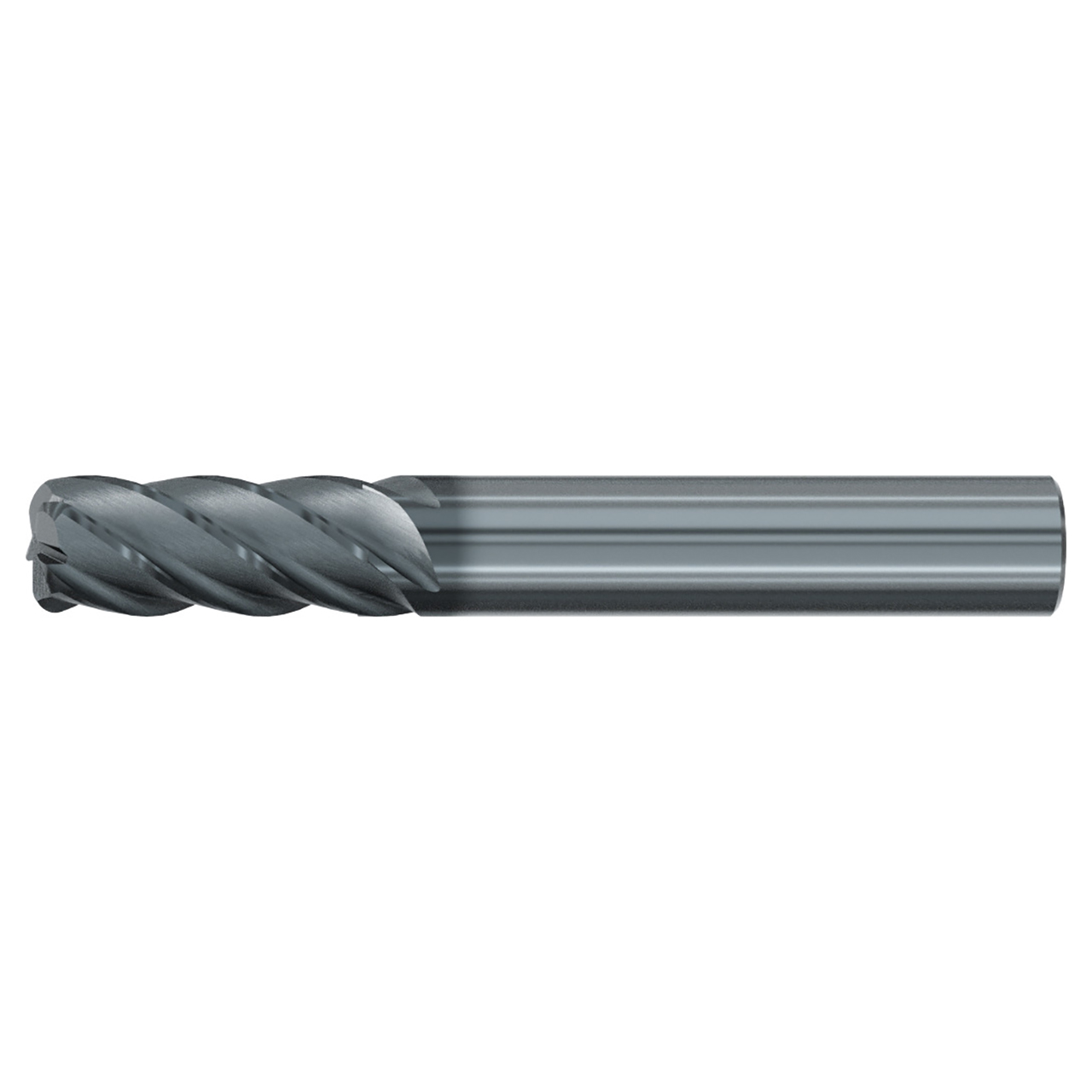

- TOP-Cut VAR carbide end mill with 5 flute design for roughing and finishing in almost all materials
- Low-vibration machining due to variable helix flute spacing
- For universal use, suitable for high speed finishing
- ALCR coating for longer tool life and very good suitability for high-alloyed materials
Product Specifications
| Manufacturer Part Number | 3902L.025060 |
| Cutting Diameter (Inch) | 1/4" |
| Cutting Diameter (Decimal Inch) | 0.250" |
| Corner Radius (Decimal Inch) | 0.060" |
| Overall Length (Inch) | 2-1/2" |
| Flute-Length (Inch) | 3-4" |
| Shank Tolerance | h6 |
| Tool Cylindrical - Shank Style | Cylindrical - HA |
| Shank Standard | DIN 6535 |
| Flute Direction | Right Hand |
| Group Length | Standard Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 5 |
| Flute Helix Angle (Degree) | 35-38 Degree |
| Cutting Edge Material | Carbide |
| Coating | ALCR |
| Tool Type | Corner Radius |
| End Mill - End Style | Square & Corner Radius End Mills |
| End Shape | Corner Radius |
| Application | Finishing |
| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Mill Diameter (Inch):
1/4"
Mill Diameter (Decimal Inch):
0.2500"
Mill Diameter (mm):
6.35mm
Number of Flutes:
5
Corner Radius (Decimal Inch):
0.0600"
Corner Radius (mm):
1.52mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Finish/Coating:
ALCR
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Application:
Finishing
