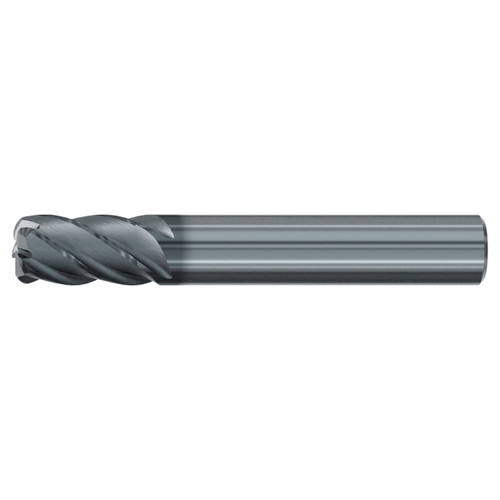

Emuge 3928L.100060 | 1" Diameter x 1" Shank x 4" OAL 5 Flute ALCR Coated Corner Radius End Mill

$526.94 $263.47
(You save $263.47)
Brand:
Emuge
Mill Diameter (Inch):
1"
Mill Diameter (Decimal Inch):
1.0000"
Mill Diameter (mm):
25.40mm
Number of Flutes:
5
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.60mm
Finish/Coating:
ALCR
Shank Diameter (Inch):
1"
Shank Diameter (Decimal Inch):
1.0000"
Shank Diameter (mm):
25.40mm
Application:
Finishing
interval quantity:
1
SKU:
25236010
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping
Emuge 3928L.100060 | 1" Diameter x 1" Shank x 4" OAL 5 Flute ALCR Coated Corner Radius End Mill

Related Products

Features:

  • TOP-Cut VAR carbide end mill with 5 flute design for roughing and finishing in almost all materials
  • Variable pitch helix angle enable low-vibration machining and universal use in almost all materials and milling processes
  • Suitable for trochoidal milling tool paths
  • ALCR coating for additional heat and wear resistance

Product Specifications
Manufacturer Part Number3928L.100060
Cutting Diameter (Inch)1"
Cutting Diameter (Decimal Inch)1.000"
Overall Length (Inch)4"
Flute-Length (Inch)1"
Shank Toleranceh6
Tool Cylindrical - Shank StyleCylindrical - HA
Shank StandardDIN 6535
Flute DirectionRight Hand
Group LengthStub Length
Coolant Supply PropertyExternal
Coolant FedNo
Number of Flute5
Flute Helix Angle (Degree)35-38 Degree
Cutting Edge MaterialCarbide
CoatingALCR
Tool TypeCorner Radius
End Mill - End StyleSquare & Corner Radius End Mills
End ShapeCorner Radius
ApplicationFinishing
Product TypeCorner Radius End Mill
