Features:

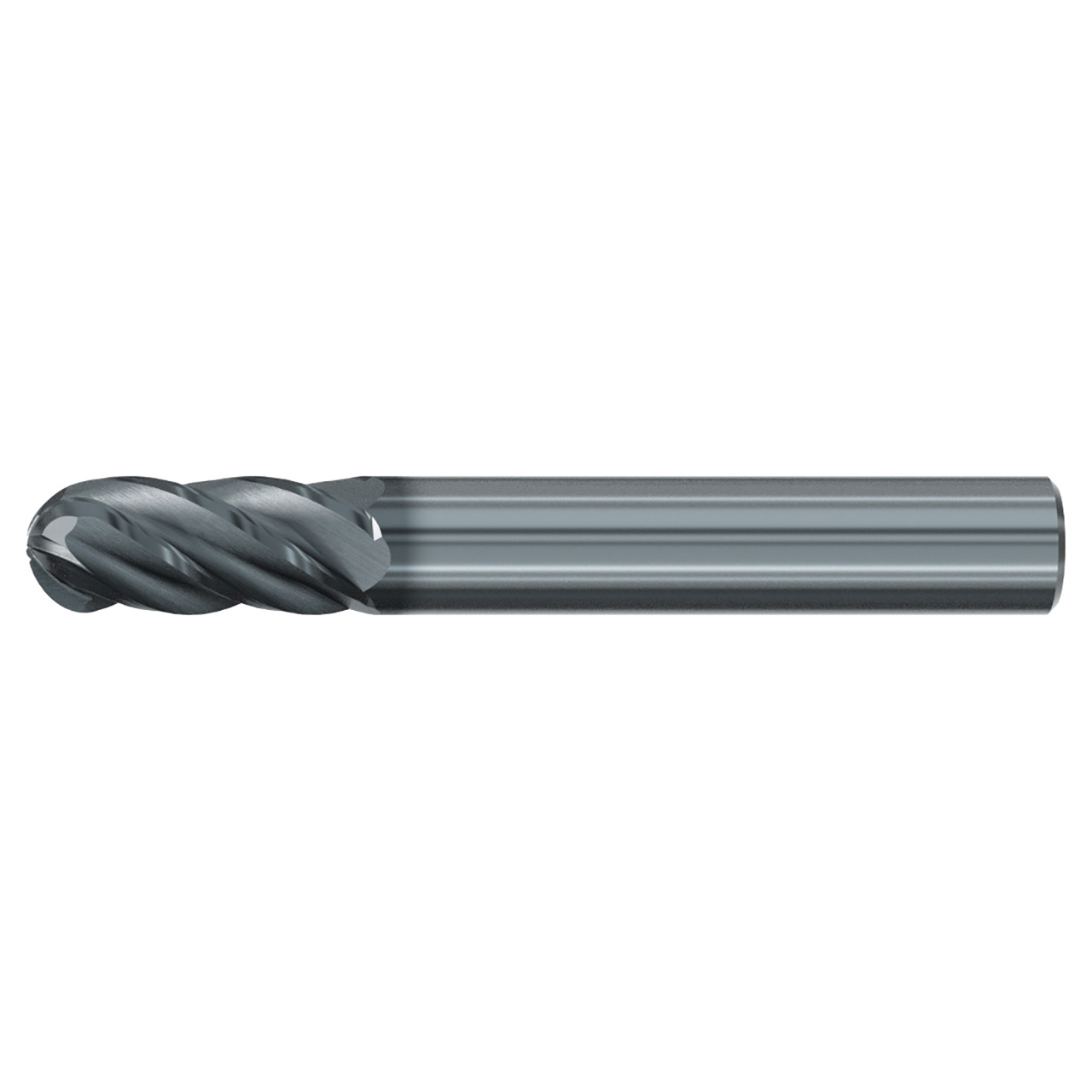

- TOP-Cut VAR carbide ball nose end mill with 5 flute design for roughing and finishing in almost all materials
- Variable helix geometry results in higher quality parts by decreasing chatter and harmonics
- Premium sub-micro grain carbide substrate
- ALCR coating for additional heat and wear resistance
Product Specifications
| Manufacturer Part Number | 3950L.0375 |
| Cutting Diameter (Inch) | 3/8" |
| Cutting Diameter (Decimal Inch) | 0.375" |
| Overall Length (Inch) | 2-3/4" |
| Flute-Length (Inch) | 7-8" |
| Shank Tolerance | h6 |
| Tool Cylindrical - Shank Style | Cylindrical - HA |
| Shank Standard | DIN 6535 |
| Flute Direction | Right Hand |
| Group Length | Standard Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 5 |
| Flute Helix Angle (Degree) | 35-38 Degree |
| Cutting Edge Material | Carbide |
| Coating | ALCR |
| Tool Type | Ball Nose |
| End Mill - End Style | Ballnose End Mills |
| End Shape | Ball |
| Application | Finishing |
| Product Type | Ball End Mill |
