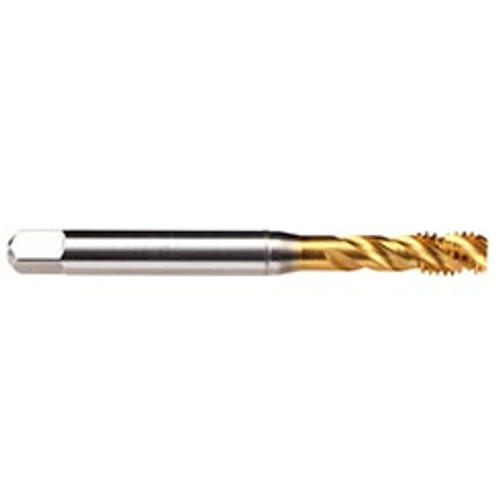

Emuge AU513700.5041 | #10-32 - Tap- EnorMZ/E- ANSI -TIN

$50.93
Ships:
From Manufacturer
Ships:
From Manufacturer
Brand:
Emuge
Thread Size:
10-32
Thread Limit:
2B
Number of Flutes:
3
Chamfer:
1.5 -2 P
Material:
HSSE
Finish/Coating:
TIN
Flute Direction:
Right Hand
Overall Length (Inch):
2-3/8"
Overall Length (Decimal Inch):
2.3740"
Overall Length (mm):
60.3mm
SKU:
15037900
Weight:
0.02 LBS
Shipping:
Calculated at Checkout

Features:

  • The Enorm Z/E design is typically for blind hole threads in long chipping materials
  • Longer tool life and more consistent thread quality

Product Specifications
Chamfer1.5 -2 P
Chamfer FormE
Pitch32
Size10
Thread Limit2B
Thread StandardUNF
Applicable MaterialLong Chipping Materials
ApplicationBlind Hole
Coolant FedNo
CoatingTIN
MaterialHSSE
TypeEnorm Z/E
Length GroupANSI Length
Flutes3
Helix Angle (Degrees)45 Degree
Shank Diameter (mm)0.194"
Dimension StandardsANSI/ANSI
Shank Toleranceh9
Overall Length (mm)2.374"
Thread Length (mm)0.591"
Flute DirectionRight Hand
