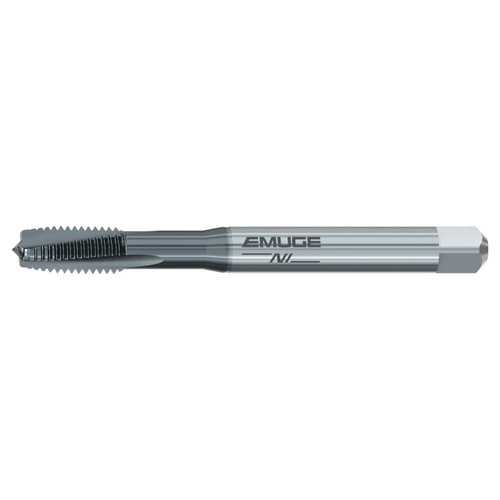

Emuge B030J411.5513 | UNJF 3/8"-24 Size x 10.00mm Shank x 18.00mm Thread Length x 90.00mm OAL x 8 Degree Helix Angle 3BX Class TICN Coated HSSE-PM Spiral Flute Tap

Emuge B030J411.5513 | UNJF 3/8"-24 Size x 10.00mm Shank x 18.00mm Thread Length x 90.00mm OAL x 8 Degree Helix Angle 3BX Class TICN Coated HSSE-PM Spiral Flute Tap

SKU: 18019959 Weight: 0.09 LBS Minimum Purchase: 1 unit
UPC:
$170.36 $166.95
(You save $3.41)
Shipping: Calculated at Checkout

About This Item

Features:

  • Rekord C-NI plug style taps with Advanced Left-Hand Helical Flute Form and chamfer geometry
  • Optimize chip evacuation in the forward direction and add strength to the cutting teeth for enhanced tool life and process security
  • HSSE-PM powdered metal tool base material for longer tool life
  • For through hole applications

Product Specifications
Manufacturer Part NumberB030J411.5513
Thread Size3/8"-24"
Thread Diameter Size (Inch)3/8"
Thread StandardUNJF
Thread per Inch (TPI)24 TPI
Tap Square (mm)8.00mm
Thread Length (mm)18.00mm
Overall Length (mm)90.00mm
Tap Chamfer4-5 P
Tap Chamfer FormD
Class of Fit3BX
Dimensional StandardsDIN / DIN
Shank Toleranceh9
Flute DirectionLeft Hand
Group LengthDIN Length
Coolant Supply PropertyExternal
Coolant FedNo
Flute Helix Angle (Degree)8 Degree
Cutting Edge MaterialHSSE-PM
CoatingTICN
Tool TypeEMUGE NI
ApplicationSpiral Flute Taps
Product TypeSpiral Flute Tap
