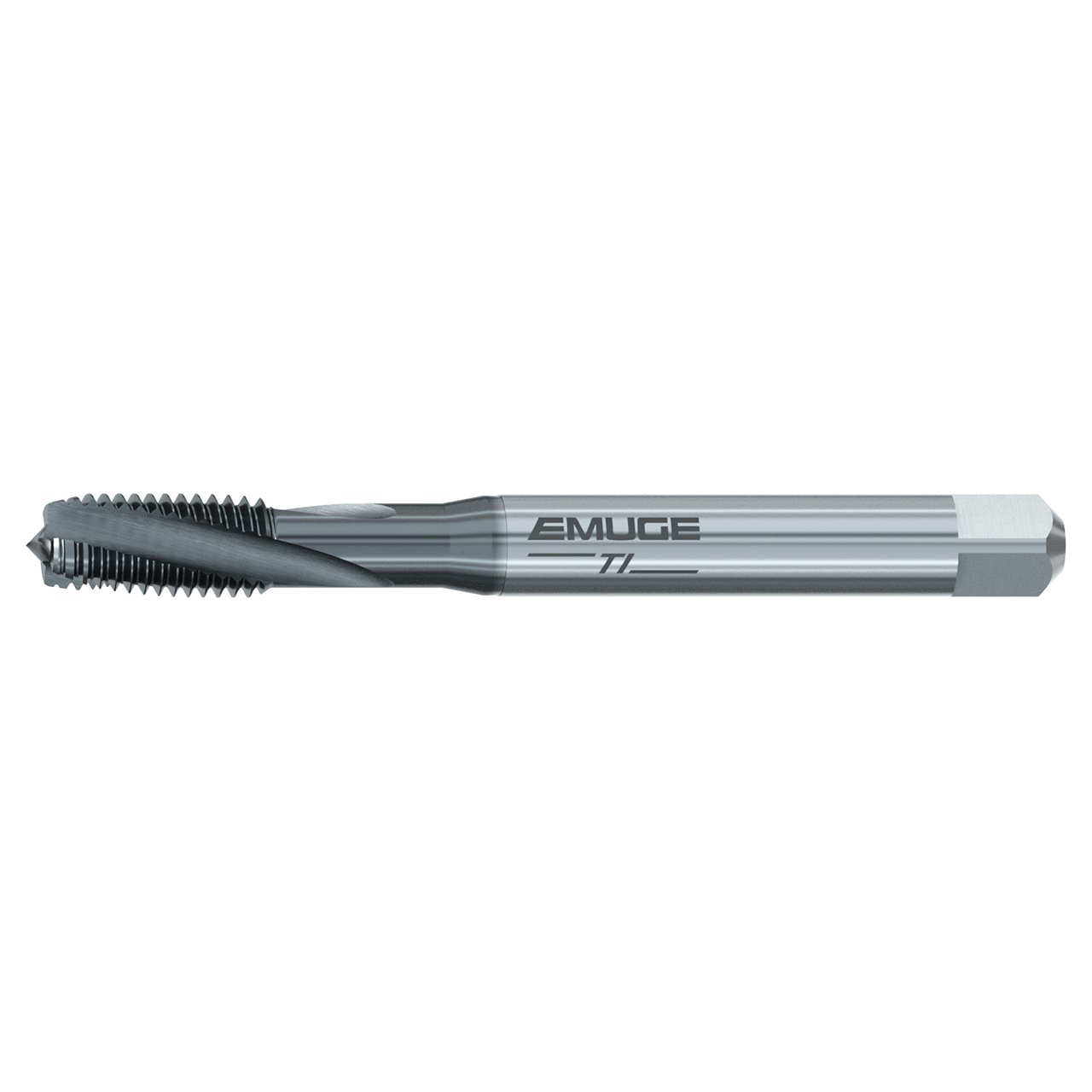

Emuge B0459611.5513 | UNJF 3/8"-24 Size x 10.00mm Shank x 18.00mm Thread Length x 90.00mm OAL x 15 Degree Helix Angle 3BX Class TICN Coated HSSE Spiral Flute Tap

Emuge B0459611.5513 | UNJF 3/8"-24 Size x 10.00mm Shank x 18.00mm Thread Length x 90.00mm OAL x 15 Degree Helix Angle 3BX Class TICN Coated HSSE Spiral Flute Tap

SKU: 17984533 Weight: 1.23 LBS Minimum Purchase: 1 unit
UPC:
$174.76 $171.26
(You save $3.50)
Shipping: Calculated at Checkout

About This Item

Features:

  • Rekord D-TI tap is a slow spiral design for blind holes
  • Best suited for titanium and high tensile strength materials
  • Spiral point creates tight curled chips that are pushed ahead of the tap

Product Specifications
Manufacturer Part NumberB0459611.5513
Thread Size3/8"-24"
Thread Diameter Size (Inch)3/8"
Thread StandardUNJF
Thread per Inch (TPI)24 TPI
Tap Square (mm)8.00mm
Thread Length (mm)18.00mm
Overall Length (mm)90.00mm
Tap Chamfer2-3 P
Tap Chamfer FormC
Class of Fit3BX
Dimensional StandardsDIN / DIN
Shank Toleranceh9
Flute DirectionRight Hand
Group LengthDIN Length
Coolant Supply PropertyExternal
Coolant FedNo
Flute Helix Angle (Degree)15 Degree
Cutting Edge MaterialHSSE
CoatingTICN
Tool TypeRekord D-TI
ApplicationSpiral Flute Taps
Product TypeSpiral Flute Tap
