Features:

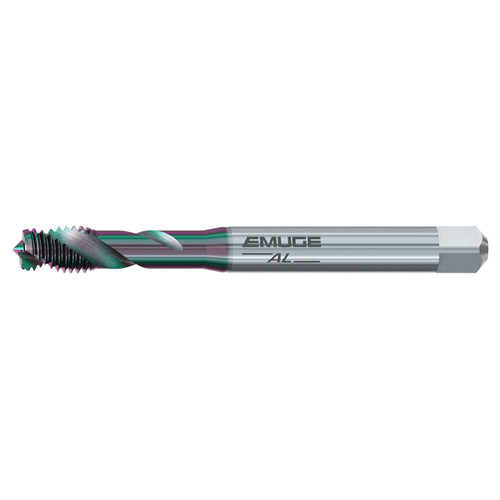

- Rekord B-AL tap is designed for wrought aluminum materials.
- Designed for use in CNC-controlled machines
- GLT-104 non-stick / low friction coating is well suited for threading aluminum alloys
- DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks
Product Specifications
| Manufacturer Part Number | B0513G00.0060 |
| Thread Size | M 6x1 |
| Thread Diameter Size | M 6 |
| Tap Square (Decimal Inch) | 0.152" |
| Thread Length (Decimal Inch) | 0.591" |
| Overall Length (mm) | 80.00mm |
| Length Group | DIN Length |
| Number of Flutes | 2 |
| Flute Helix Angle (Degree) | 35 Degree |
| Dimensional Standard | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Right Hand |
| Thread Standard | M |
| Thread Tolerance Class | ISO 2/6H |
| Tap Chamfer | 1.5 -2 P |
| Tap Chamfer Form | B |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE |
| Coating | GLT-104 |
| Product Type | Spiral Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Thread Size:
M 6x1
Thread Diameter Size:
M 6
Overall Length (Inch):
3-3/20"
Overall Length (Decimal Inch):
3.1496"
Overall Length (mm):
80.00mm
Thread Length (Inch):
13/22"
Thread Length (Decimal Inch):
0.5910"
Thread Length (mm):
15.01mm
Number of Flutes:
2
Coating:
GLT-104
Flute Helix Angle (Degree):
35 Degree
