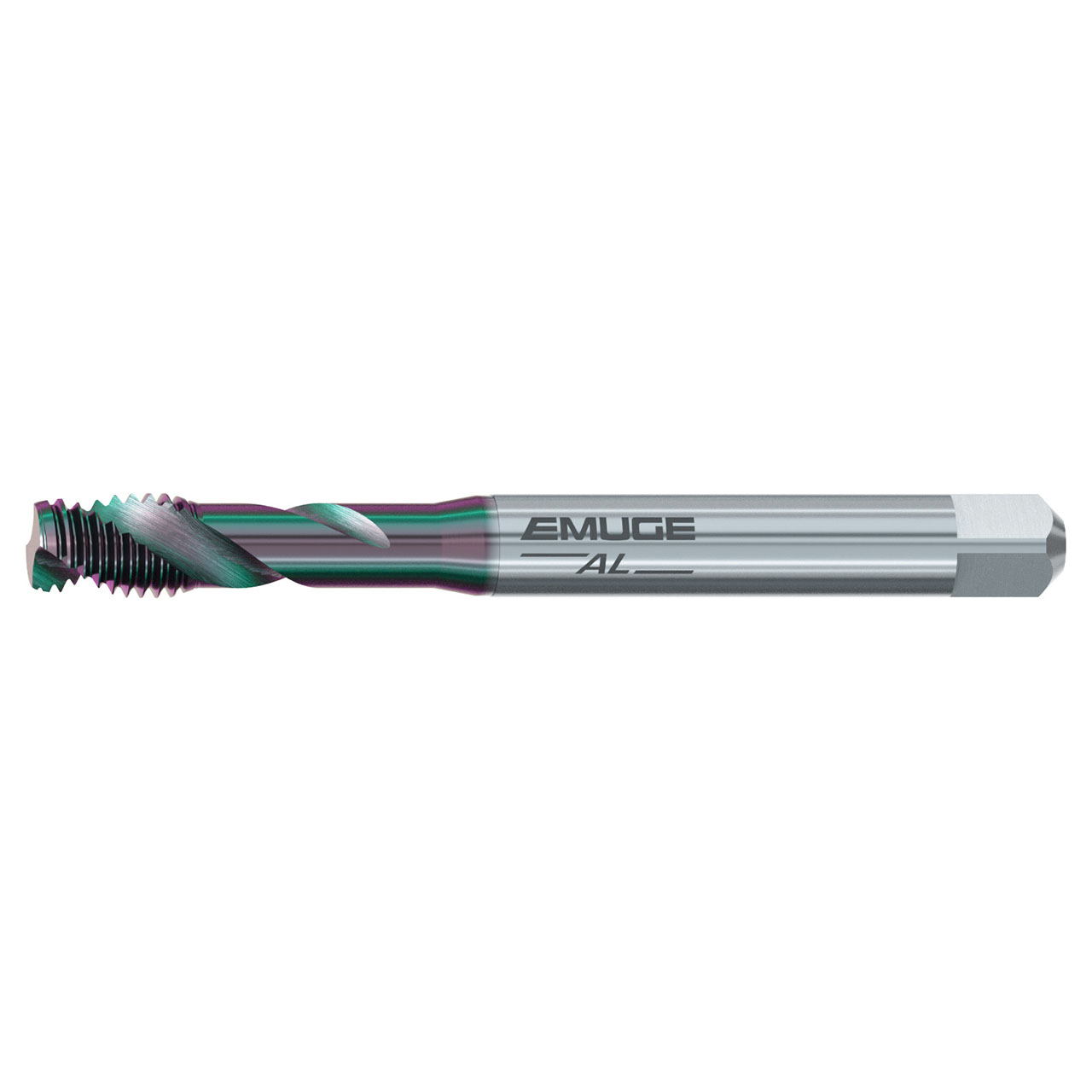

Emuge BU513G10.5614 | #8-32 Thread Size x 0.591" Thread Length x 0.191" Tap Square 2 Flute GLT-104 Coated Spiral Flute Tap

$80.55 $78.94
(You save $1.61)
Brand:
Emuge
Threads per Inch (TPI):
32 TPI
Overall Length (Decimal Inch):
3.1500"
Overall Length (mm):
80.01mm
Number of Flutes:
2
Finish/Coating:
GLT-104
interval quantity:
1
SKU:
18019801
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Emuge BU513G10.5614 | #8-32 Thread Size x 0.591" Thread Length x 0.191" Tap Square 2 Flute GLT-104 Coated Spiral Flute Tap

Features:

  • The Enorm AL design is typically for blind hole threads in long chipping materials.
  • The fast spiral flute provides good chip removal from blind holes
  • GLT-104 non-stick / low friction coating is well suited for threading aluminum alloys
  • DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks

Product Specifications
Manufacturer Part NumberBU513G10.5614
Thread Size#8-32
Thread Diameter Size#8
Thread Per Inch (TPI)32 TPI
Tap Square (Decimal Inch)0.191"
Thread Length (Decimal Inch)0.591"
Overall Length (Decimal Inch)3.150"
Length GroupDIN Length
Number of Flutes2
Flute Helix Angle (Degree)45 Degree
Dimensional StandardDIN/ANSI
Shank Toleranceh9
Flute DirectionRight Hand
Thread StandardSTI-UNC
Thread Tolerance Class3B
Tap Chamfer1.5 -2 P
Tap Chamfer FormE
Coolant Supply PropertyExternal
Cutting Edge MaterialHSSE
CoatingGLT-104
Product TypeSpiral Flute Tap
