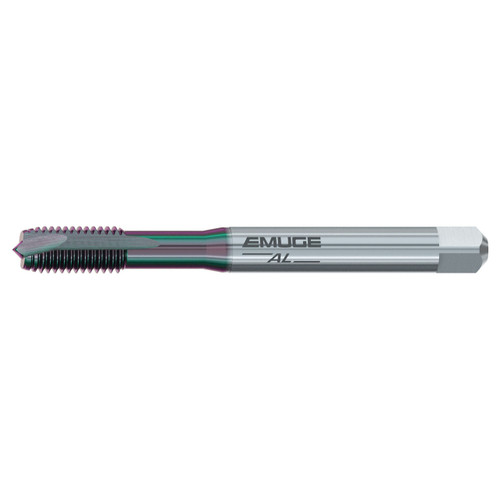

Emuge BU203G10.5613 | #6-32 Thread Size x 0.591" Thread Length x 0.191" Tap Square 2 Flute GLT-104 Coated Spiral Point STI Tap

Emuge BU203G10.5613 | #6-32 Thread Size x 0.591" Thread Length x 0.191" Tap Square 2 Flute GLT-104 Coated Spiral Point STI Tap

SKU: 18019659 Weight: 1.23 LBS Minimum Purchase: 1 unit
UPC:
$75.71 $74.20
(You save $1.51)
Shipping: Calculated at Checkout

About This Item

Features:

  • Rekord B-AL tap is designed for wrought aluminum materials.
  • The spiral point ensures optimum chip removal in the feed direction
  • GLT-104 non-stick / low friction coating is well suited for threading aluminum alloys
  • DIN/DIN standard dimensions for overall length and shank size

Product Specifications
Manufacturer Part NumberBU203G10.5613
Thread Size#6-32
Thread Diameter Size#6
Thread Per Inch (TPI)32 TPI
Tap Square (Decimal Inch)0.191"
Thread Length (Decimal Inch)0.591"
Overall Length (Decimal Inch)2.756"
Length GroupDIN Length
Number of Flutes2
Dimensional StandardDIN/ANSI
Shank Toleranceh9
Flute DirectionStraight
Thread StandardSTI-UNC
Thread Tolerance Class3B
Tap Chamfer4 -5 P
Tap Chamfer FormB
Coolant Supply PropertyExternal
Cutting Edge MaterialHSSE
CoatingGLT-104
Product TypeSpiral Point STI Tap
