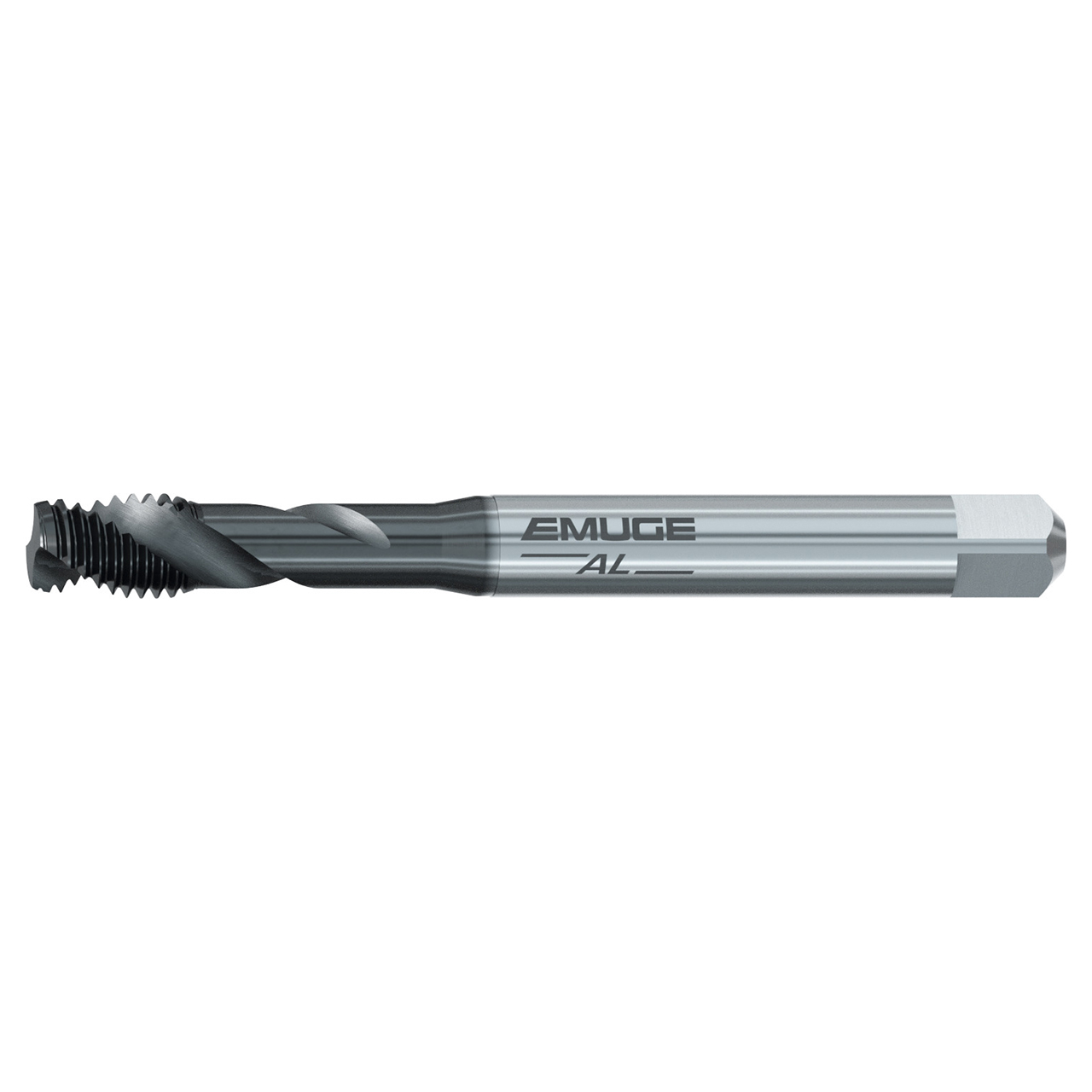

Emuge B051S800.0040 | M 4x0.7 Thread Size x 4.50mm Shank x 63.00mm OAL 35 Degree Helix Angle GLT-8 Coated Spiral Flute Tap

$60.10
Brand:
Emuge
Thread Size:
M 4x0.7
Number of Flutes:
2
Finish/Coating:
GLT-8
Flute Direction:
Right Hand
Overall Length (Inch):
2-31/64"
Overall Length (Decimal Inch):
2.4803"
Overall Length (mm):
63.00mm
interval quantity:
1
SKU:
15040677
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Emuge B051S800.0040 | M 4x0.7 Thread Size x 4.50mm Shank x 63.00mm OAL 35 Degree Helix Angle GLT-8 Coated Spiral Flute Tap

Features:

  • The Enorm AL design is typically for blind hole threads in long chipping materials
  • The fast spiral flute provides good chip removal from blind holes
  • GLT-8 non-stick / low friction coating is well suited for threading aluminum alloys
  • DIN/DIN standard dimensions for overall length and shank size

Product Specifications
Manufacturer Part NumberB051S800.0040
Thread SizeM 4x0.7
Thread Diameter SizeM 4
Thread StandardM
Thread Pitch (mm)0.70mm
Tap Square (mm)3.40mm
Thread Length (mm)7.00mm
Overall Length (mm)63.00mm
Thread Tolerance ClassISO 2/6H
Tap Chamfer1.5-2 P
Tap Chamfer FormE
Dimensional StandardsDIN/DIN
Shank Toleranceh9
Flute DirectionRight Hand
Group LengthDIN Length
Coolant Supply PropertyExternal
Coolant FedNo
Number of Flute2
Flute Helix Angle (Degree)35 Degree
Cutting Edge MaterialHSSE
CoatingGLT-8
Tool TypeEMUGE AL
ApplicationSpiral Flute Taps
Product TypeSpiral Flute Tap
