Features:
- Speed taps are able to operate at higher cutting speeds than conventional designs
- Axial coolant fed to maximize chip evacuation and improve thread quality
- Ideal for use with EMUGE Speedsynchro® Modular
- DIN/DIN standard dimensions for overall length and shank size
Product Specifications

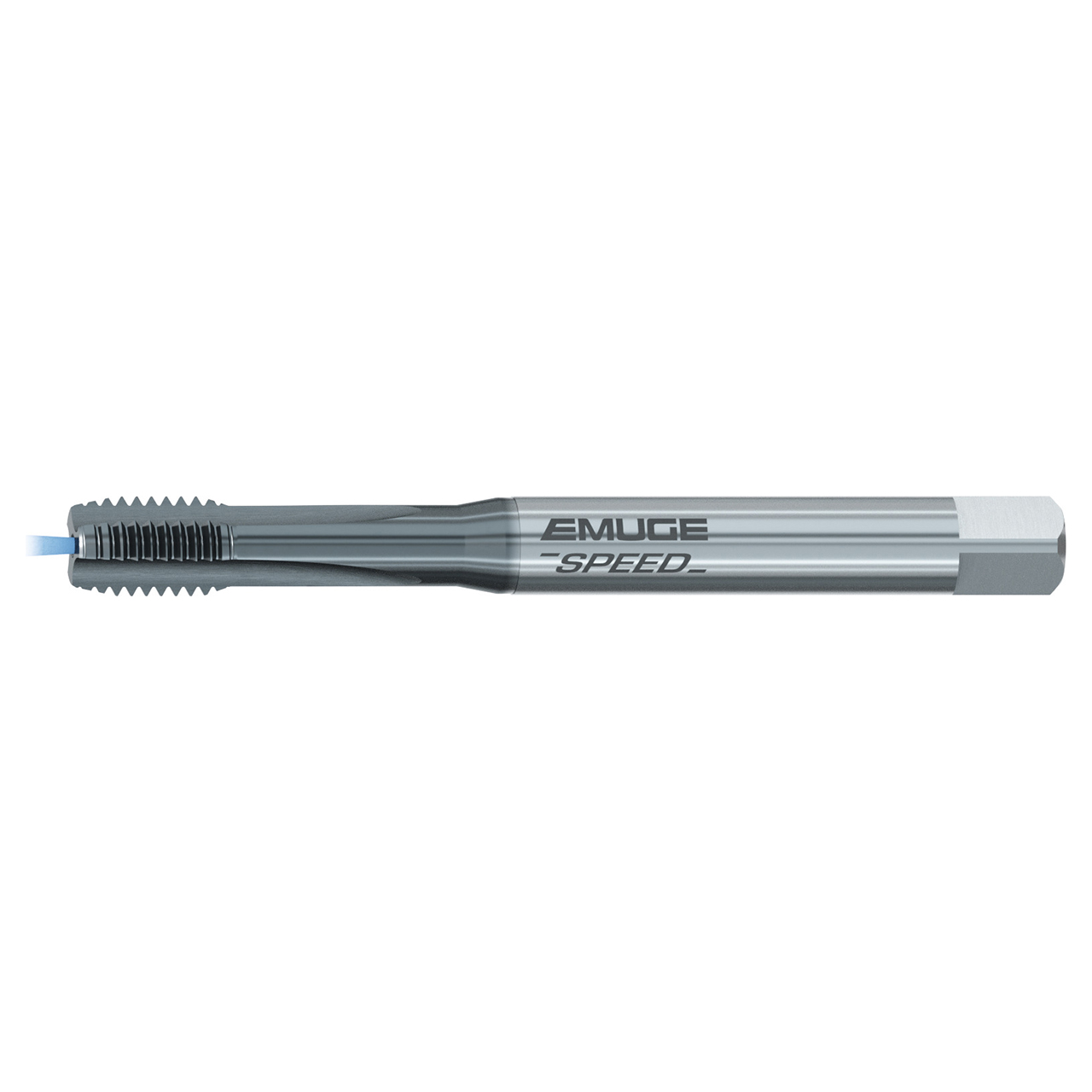

| Manufacturer Part Number | B3169401.0040 |
| Thread Size | M 4x0.7 |
| Thread Diameter Size | M 4 |
| Thread Standard | M |
| Thread Pitch (mm) | 0.70mm |
| Tap Square (mm) | 3.40mm |
| Thread Length (mm) | 7.00mm |
| Overall Length (mm) | 63.00mm |
| Thread Tolerance Class | 6HX |
| Tap Chamfer | 1.5-2 P |
| Tap Chamfer Form | E |
| Dimensional Standards | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Group Length | DIN Length |
| Coolant Supply Property | Internal |
| Coolant Fed | Axial |
| Number of Flute | 3 |
| Cutting Edge Material | HSSE |
| Coating | TiCN |
| Tool Type | Rekord A-Speed |
| Application | Straight Flute Taps |
| Product Type | Straight Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Thread Size (Inch):
M 4x0.7
Overall Length (Inch):
2-31/64"
Overall Length (Decimal Inch):
2.4803"
Overall Length (mm):
63.00mm
Number of Flutes (2, 3, 4, etc.):
3
Finish/Coating (AL2 Plus, AlCrN, etc):
TiCN
Thread Standard (BA, BSF, BSW, Metric, etc):
M
