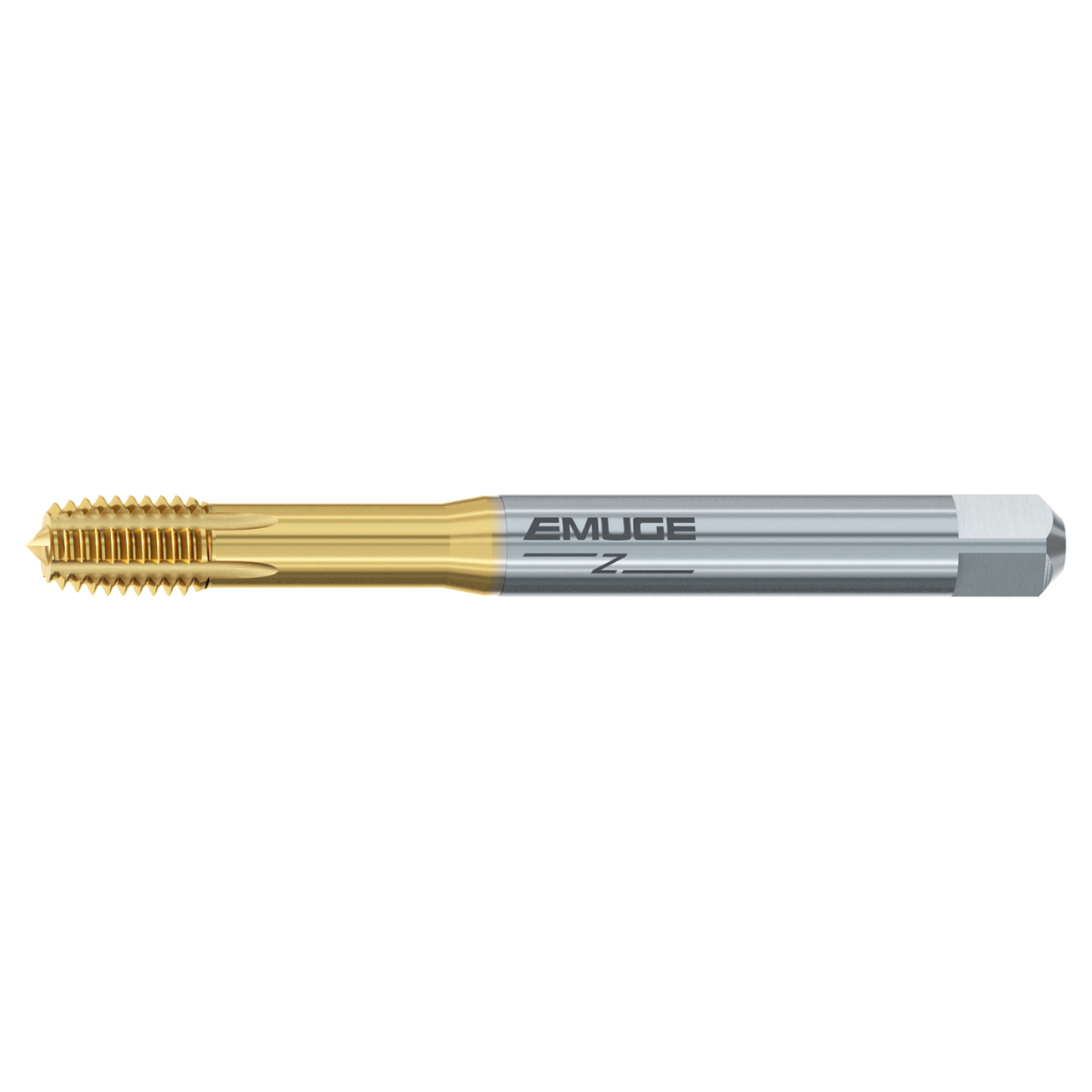

Emuge B521Z700.5006 | #8-32 Thread Size x 4.5.00mm Shank x 63.00mm OAL TiN-80 Coated Thread Forming Tap

$117.67
Brand:
Emuge
Thread Size:
#8-32
Finish/Coating:
TiN-80
Thread Standard:
UNC
interval quantity:
1
SKU:
15040878
Weight:
1.23 LBS
Shipping:
Free Shipping

Features:

  • The InnoForm Z roll form powdered metal tap is designed for many applications
  • Short threaded part and special polygon shape for less torque
  • TIN-80 coated for heat and wear resistance
  • DIN/DIN standard dimensions for overall length and shank size

Product Specifications
Manufacturer Part NumberB521Z700.5006
Cutting Diameter (Decimal Inch)32.000"
Thread Size#8-32
Thread Diameter Size#8
Thread StandardUNC
Thread per Inch (TPI)32 TPI
Overall Length (mm)63.00mm
Flute Length (mm)13.00mm
Thread Tolerance Class2BX
Tap Chamfer2-3 P
Tap Chamfer FormC
Dimensional StandardsDIN/DIN
Shank Toleranceh9
Flute DirectionStraight
Group LengthDIN Length
Coolant Supply PropertyExternal
Coolant FedNo
Cutting Edge MaterialHSSE-PM
CoatingTiN-80
Tool TypeEMUGE Z
ApplicationForm Taps
Product TypeThread Forming Tap
