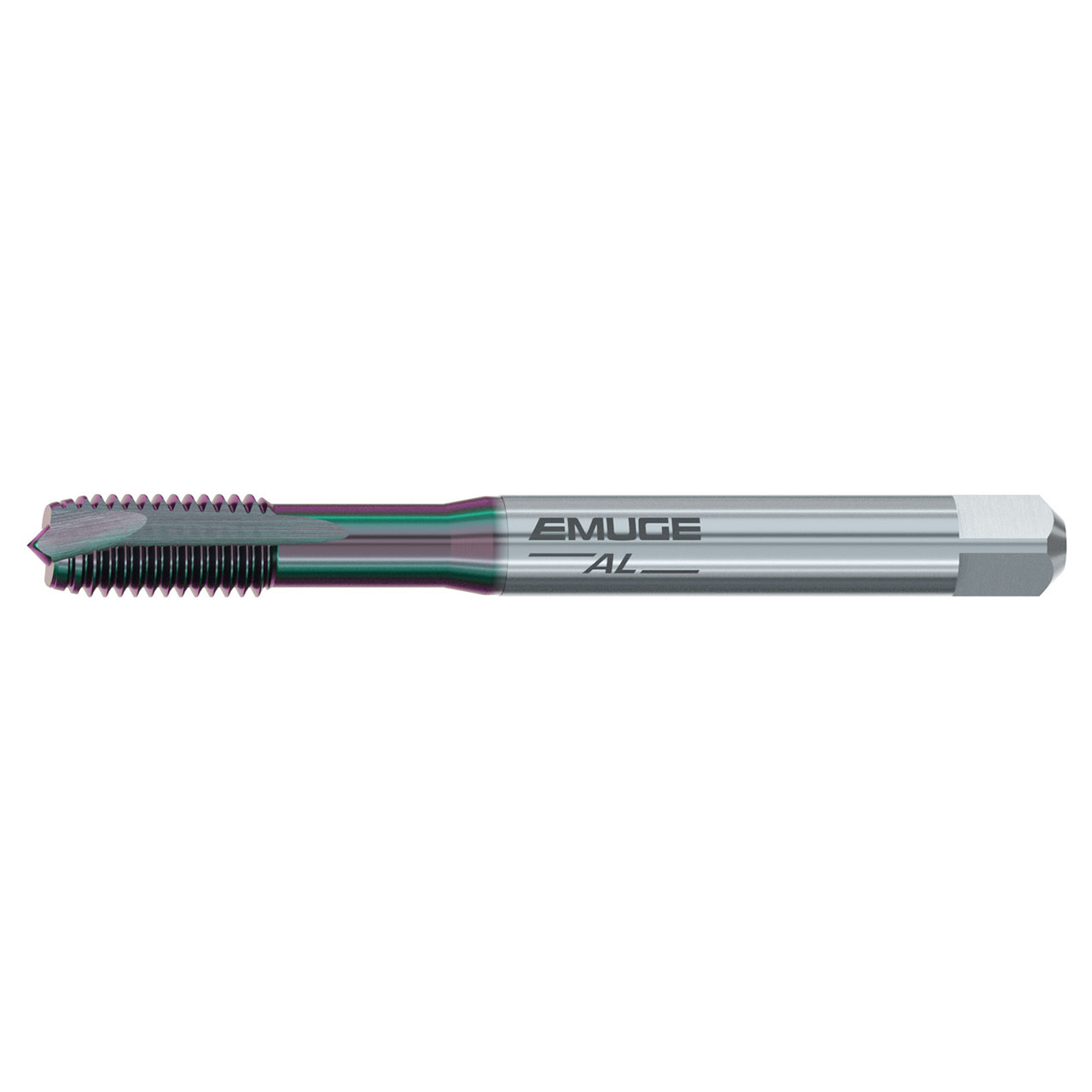

Features:
- The Enorm AL design is typically for blind hole threads in long chipping materials such as wrought aluminum alloys.
- The fast spiral flute (45 Degree) provides good chip removal from blind holes
- GLT-104 non-stick / low friction coating is well suited for threading aluminum alloys
- DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks
Product Specifications
| Manufacturer Part Number | BU203G10.5637 |
| Thread Size | #10-32 |
| Thread Diameter Size | #10 |
| Thread Per Inch (TPI) | 32 TPI |
| Tap Square (Decimal Inch) | 0.131" |
| Thread Length (Decimal Inch) | 0.313" |
| Overall Length (Decimal Inch) | 3.150" |
| Length Group | DIN Length |
| Number of Flutes | 2 |
| Dimensional Standard | DIN/ANSI |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Thread Standard | STI-UNF |
| Thread Tolerance Class | 3B |
| Tap Chamfer | 4 -5 P |
| Tap Chamfer Form | C |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE |
| Coating | GLT-104 |
| Product Type | Spiral Point STI Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Thread Size:
#10-32
Thread Diameter Size:
#10
Thread Per Inch (TPI):
32 TPI
Overall Length (Inch):
3-3/20"
Overall Length (Decimal Inch):
3.1500"
Overall Length (mm):
80.01mm
Thread Length (Inch):
5/16"
Thread Length (Decimal Inch):
0.3130"
Thread Length (mm):
7.95mm
Number of Flutes:
2
Coating:
GLT-104
