Features:

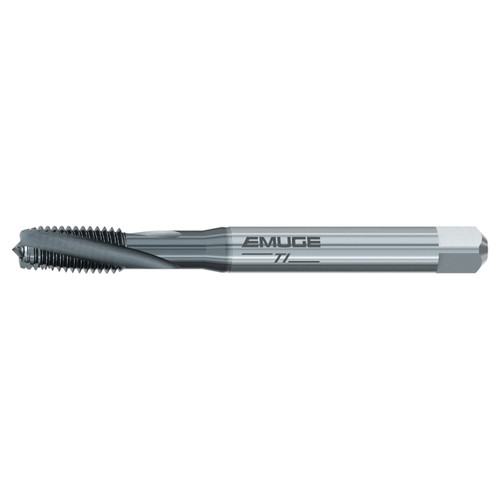

- Rekord D-TI tap is a slow spiral design for blind holes
- Best suited for titanium and high tensile strength materials
- Spiral point creates tight curled chips that are pushed ahead of the tap
- DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks
Product Specifications
| Manufacturer Part Number | BU459611.5612 |
| Thread Size | #5-40 |
| Thread Diameter Size | #5 |
| Thread Standard | STI-UNC |
| Thread per Inch (TPI) | 40 TPI |
| Tap Square (Decimal Inch) | 0.131" |
| Thread Length (Decimal Inch) | 0.512" |
| Overall Length (Decimal Inch) | 2.480" |
| Shank Machine Side Connection Diameter (Decimal Inch) | 0.168" |
| Thread Tolerance Class | 3BX |
| Tap Chamfer | 2-3 P |
| Tap Chamfer Form | C |
| Dimensional Standards | DIN/ANSI |
| Shank Tolerance | h9 |
| Flute Direction | Right Hand |
| Group Length | DIN Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 3 |
| Flute Helix Angle (Degree) | 15 Degree |
| Cutting Edge Material | HSSE |
| Coating | TICN |
| Tool Type | Rekord D-TI |
| Application | STI Taps |
| Product Type | Thread Forming STI Tap |
