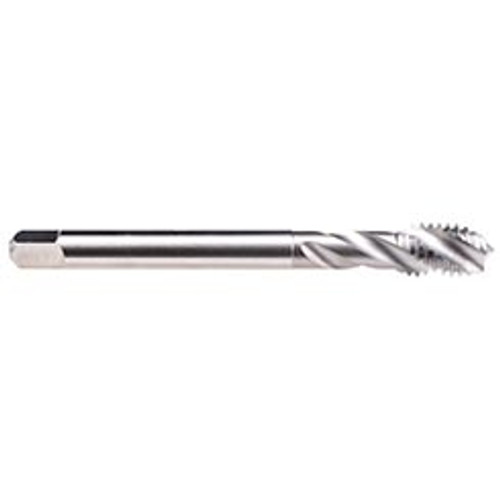

Features:
- The Enorm Steel design is typically for blind hole threads in long chipping materials such as steel and copper alloys
- The fast spiral flute (35 Degree) provides good chip removal from blind holes
Product Specifications
| Chamfer | 2-3 P |
| Chamfer Form | C |
| Pitch | 28 |
| Size | 12 |
| Thread Limit | 2B |
| Thread Standard | UNF |
| Application | Steel, Copper Alloys |
| Coolant Fed | No |
| Coating/Finish | Bright |
| Material | HSSE |
| Helix Angle (Degrees) | 35 Degree |
| Shank Diameter (mm) | 0.220" |
| Dimension Standards | DIN/ANSI |
| Shank Tolerance | h9 |
| Overall Length (mm) | 3.150" |
| Thread Length (mm) | 0.630" |
| Flute Direction | Right Hand |
