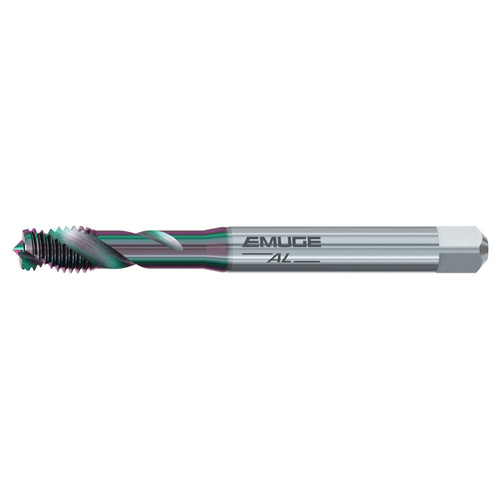

Emuge BU503G10.5007 | #8-32 Thread Size x 0.417" Thread Length x 0.238" Tap Square 2 Flute GLT-104 Coated Spiral Flute Tap

$56.27 $55.14
(You save $1.13)
Brand:
Emuge
Thread Size:
#8-32
Thread Diameter Size:
#8
Thread Per Inch (TPI):
32 TPI
Overall Length (Inch):
2-12/25"
Overall Length (Decimal Inch):
2.4800"
Overall Length (mm):
62.99mm
Thread Length (Inch):
5/12"
Thread Length (Decimal Inch):
0.4170"
Thread Length (mm):
10.59mm
Number of Flutes:
2
Coating:
GLT-104
Flute Helix Angle (Degree):
45 Degree
interval quantity:
1
SKU:
18019758
UPC:
Weight:
0.01 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Emuge BU503G10.5007 | #8-32 Thread Size x 0.417" Thread Length x 0.238" Tap Square 2 Flute GLT-104 Coated Spiral Flute Tap

Features:

  • The Enorm AL design is typically for blind hole threads in long chipping materials such as wrought aluminum alloys.
  • The fast spiral flute (45 Degree) provides good chip removal from blind holes
  • GLT-104 non-stick / low friction coating is well suited for threading aluminum alloys
  • DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks

Product Specifications
Manufacturer Part NumberBU503G10.5007
Thread Size#8-32
Thread Diameter Size#8
Thread Per Inch (TPI)32 TPI
Tap Square (Decimal Inch)0.238"
Thread Length (Decimal Inch)0.417"
Overall Length (Decimal Inch)2.480"
Length GroupDIN Length
Number of Flutes2
Flute Helix Angle (Degree)45 Degree
Dimensional StandardDIN/ANSI
Shank Toleranceh9
Flute DirectionRight Hand
Thread StandardUNC
Thread Tolerance Class3B
Tap Chamfer2 -3 P
Tap Chamfer FormC
Coolant Supply PropertyExternal
Cutting Edge MaterialHSSE
CoatingGLT-104
Product TypeSpiral Flute Tap
