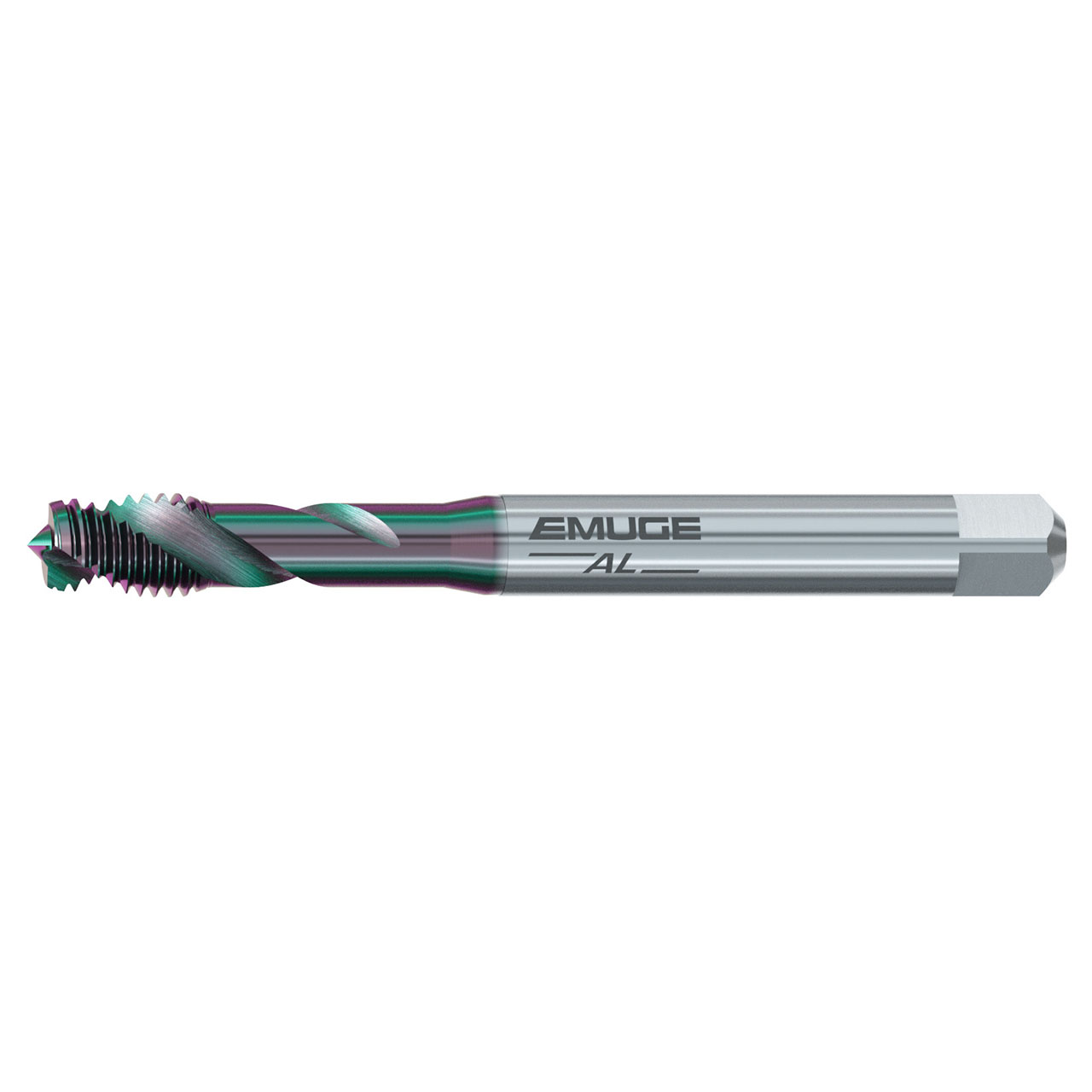

Emuge BU503G10.5043 | 1/4"-28 Thread Size x 0.512" Thread Length x 0.191" Tap Square 2 Flute GLT-104 Coated Spiral Flute Tap

$68.95 $67.57
(You save $1.38)
Brand:
Emuge
Threads per Inch (TPI):
28 TPI
Overall Length (Decimal Inch):
3.1500"
Overall Length (mm):
80.01mm
Number of Flutes:
2
Finish/Coating:
GLT-104
interval quantity:
1
SKU:
18019763
UPC:
Weight:
0.04 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Emuge BU503G10.5043 | 1/4"-28 Thread Size x 0.512" Thread Length x 0.191" Tap Square 2 Flute GLT-104 Coated Spiral Flute Tap

Features:

  • The Enorm AL design is typically for blind hole threads in long chipping materials.
  • The fast spiral flute provides good chip removal from blind holes
  • GLT-104 non-stick / low friction coating is well suited for threading aluminum alloys
  • DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks

Product Specifications
Manufacturer Part NumberBU503G10.5043
Thread Size1/4"-28
Thread Diameter Size1/4"
Thread Per Inch (TPI)28 TPI
Tap Square (Decimal Inch)0.191"
Thread Length (Decimal Inch)0.512"
Overall Length (Decimal Inch)3.150"
Length GroupDIN Length
Number of Flutes2
Flute Helix Angle (Degree)45 Degree
Dimensional StandardDIN/ANSI
Shank Toleranceh9
Flute DirectionRight Hand
Thread StandardUNF
Thread Tolerance Class3B
Tap Chamfer2 -3 P
Tap Chamfer FormE
Coolant Supply PropertyExternal
Cutting Edge MaterialHSSE
CoatingGLT-104
Product TypeSpiral Flute Tap

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
