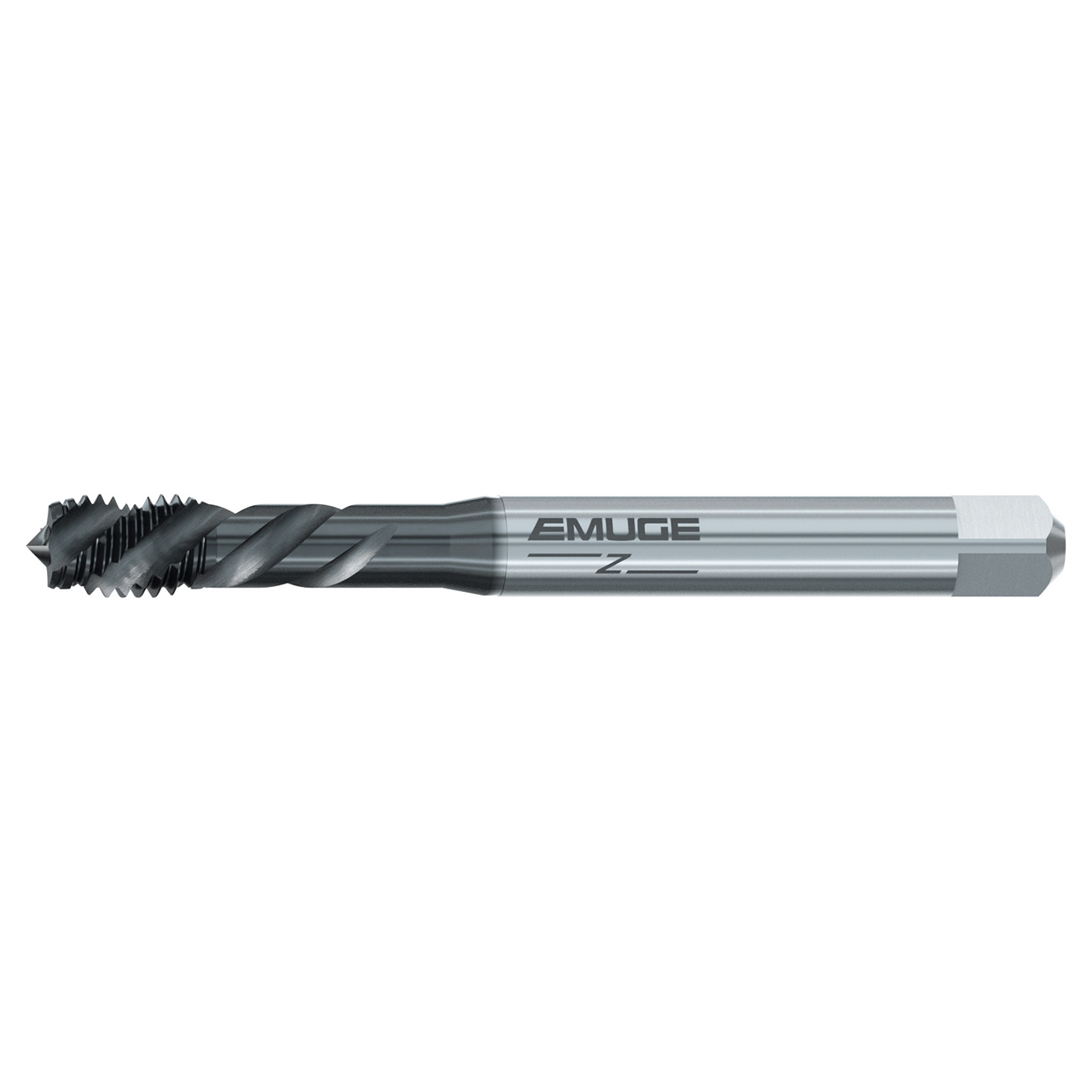

Emuge BU50C460.5003 | #4-40 Thread Size x 2.205" OAL 2 Flute GLT-1 Coated Spiral Flute Tap

Emuge BU50C460.5003 | #4-40 Thread Size x 2.205" OAL 2 Flute GLT-1 Coated Spiral Flute Tap

SKU: 15038889 Weight: 1.23 LBS Minimum Purchase: 1 unit
UPC:
$78.64 $77.07
(You save $1.57)
Shipping: Calculated at Checkout

About This Item

Features:

  • The Enorm Z design is typically for blind hole threads in long chipping materials
  • The fast spiral flute provides good chip removal from blind holes
  • GLT-1 coated for heat and wear resistance as well as added lubricity
  • DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks

Product Specifications
Manufacturer Part NumberBU50C460.5003
Thread Size#4-40
Thread Diameter Size#4
Thread StandardUNC
Thread per Inch (TPI)40 TPI
Tap Square (Decimal Inch)0.110"
Thread Length (Decimal Inch)0.433"
Overall Length (Decimal Inch)2.205"
Shank Machine Side Connection Diameter (Decimal Inch)0.141"
Thread Tolerance Class3B
Tap Chamfer2-3 P
Tap Chamfer FormC
Dimensional StandardsDIN/ANSI
Shank Toleranceh9
Flute DirectionLeft Hand
Group LengthDIN Length
Coolant Supply PropertyExternal
Coolant FedNo
Number of Flute2
Flute Helix Angle (Degree)45 Degree
Cutting Edge MaterialHSSE
CoatingGLT-1
Tool TypeEnorm Z
ApplicationSpiral Flute Taps
Product TypeSpiral Flute Tap
