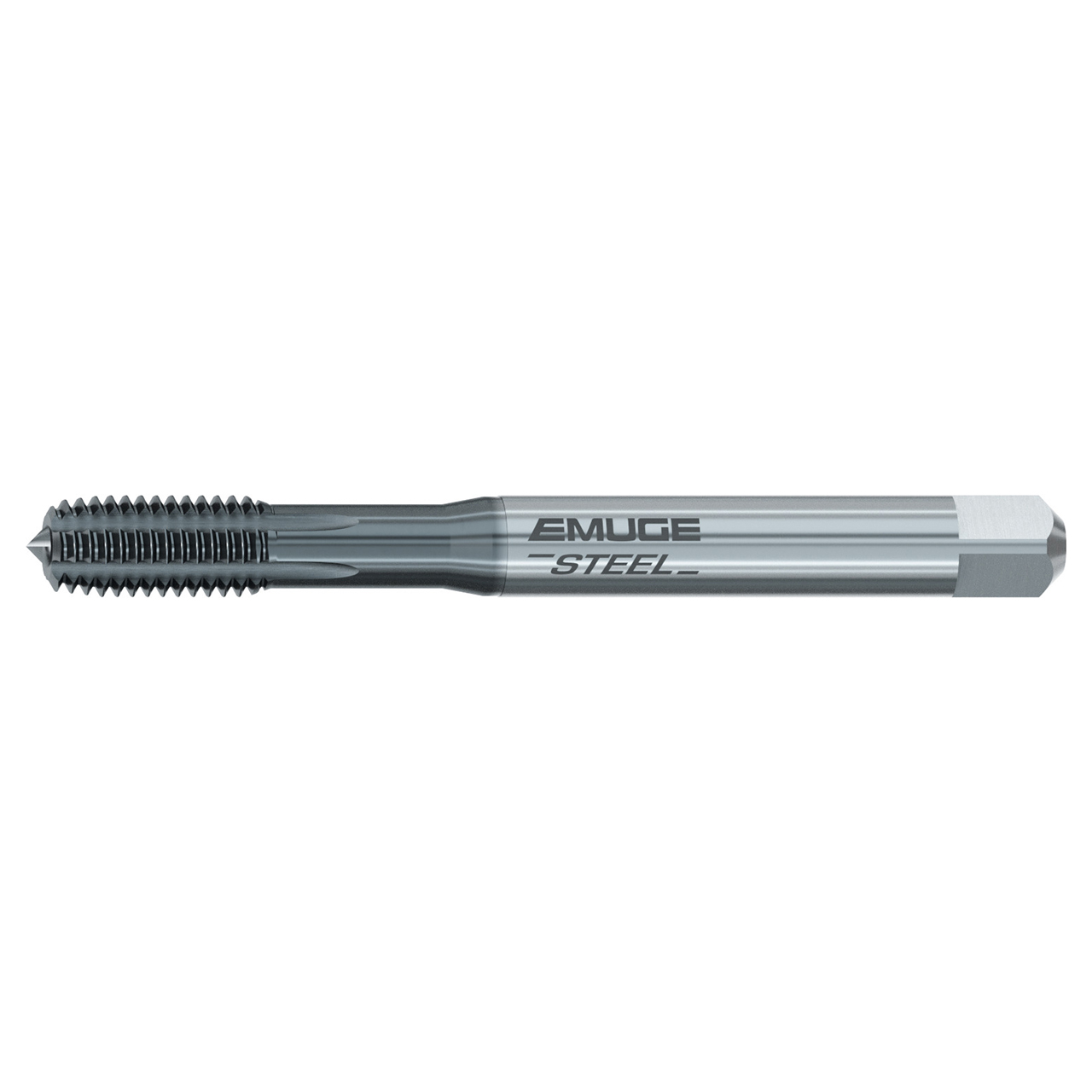

Emuge BU929000.5609 | #2-56 Thread Size x 2.205" OAL Flute TICN Coated Thread Forming STI Tap

Emuge BU929000.5609 | #2-56 Thread Size x 2.205" OAL Flute TICN Coated Thread Forming STI Tap

SKU: 15039127 Weight: 1.23 LBS Minimum Purchase: 1 unit
UPC:
$122.73 $120.28
(You save $2.45)
Shipping: Calculated at Checkout

About This Item

Features:

  • The Druck Steel roll form tap for the chipless production of internal threads, blind and though hole
  • Steel Alloys & Long Chipping Materials
  • TICN coated for additional wear resistance
  • DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks

Product Specifications
Manufacturer Part NumberBU929000.5609
Thread Size#2-56
Thread Diameter Size#2
Thread StandardSTI-UNC
Thread per Inch (TPI)56 TPI
Tap Square (Decimal Inch)0.110"
Thread Length (Decimal Inch)0.433"
Overall Length (Decimal Inch)2.205"
Shank Machine Side Connection Diameter (Decimal Inch)0.141"
Thread Tolerance Class2BX
Tap Chamfer2-3 P
Tap Chamfer FormC
Dimensional StandardsDIN/ANSI
Shank Toleranceh9
Flute DirectionStraight
Group LengthDIN Length
Coolant Supply PropertyExternal
Coolant FedNo
Cutting Edge MaterialHSSE
CoatingTICN
Tool TypeRoll Form - Druck
ApplicationSTI Taps
Product TypeThread Forming STI Tap
