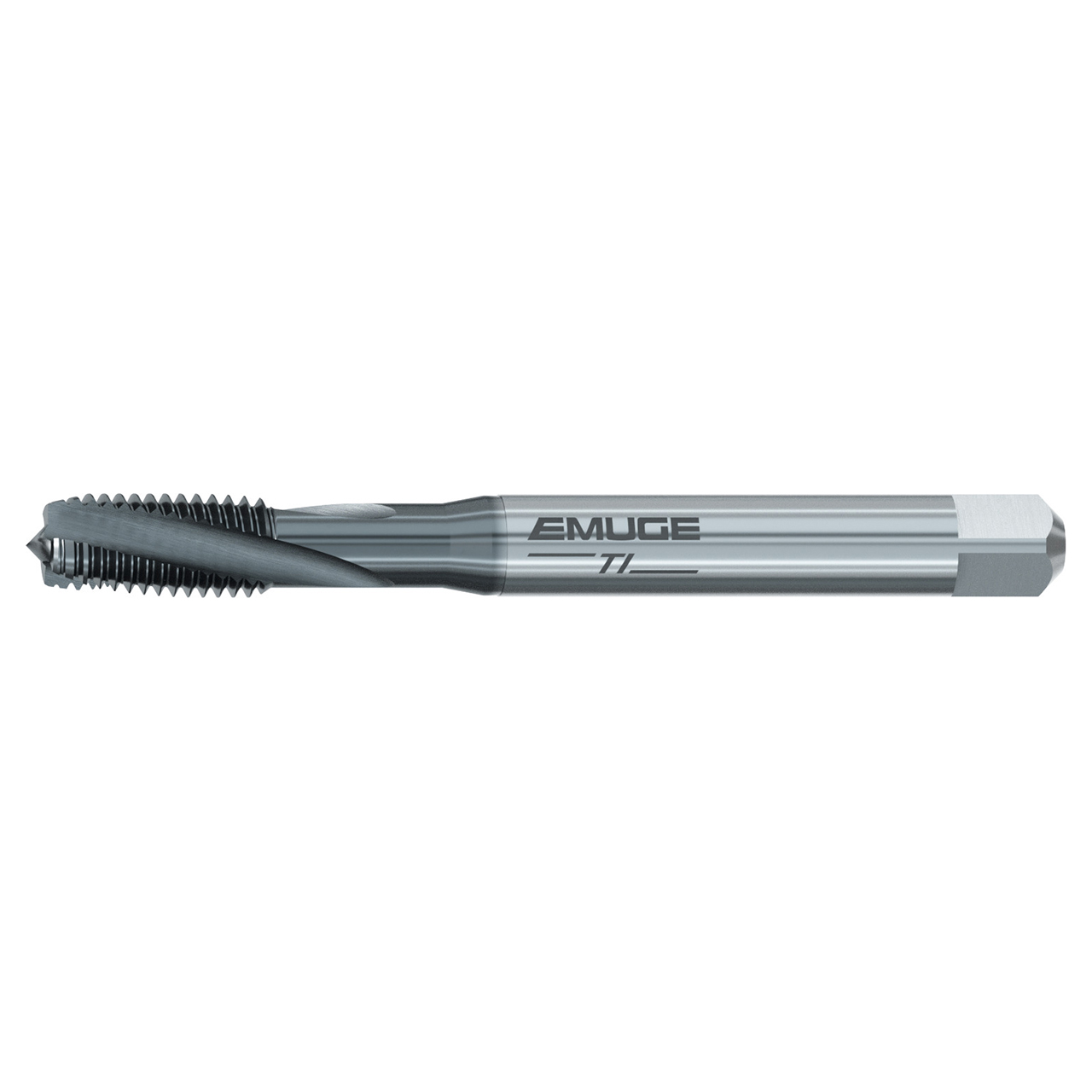

Emuge BU459611.5633 | #4-48 Thread Size x 2.205" OAL 3 Flute TICN Coated Thread Forming STI Tap

Emuge BU459611.5633 | #4-48 Thread Size x 2.205" OAL 3 Flute TICN Coated Thread Forming STI Tap

SKU: 17984793 Weight: 1.23 LBS Minimum Purchase: 1 unit
UPC:
$89.29 $87.50
(You save $1.79)
Shipping: Calculated at Checkout

About This Item

Features:

  • Rekord D-TI tap is a slow spiral design for blind holes
  • Best suited for titanium and high tensile strength materials
  • Spiral point creates tight curled chips that are pushed ahead of the tap
  • DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks

Product Specifications
Manufacturer Part NumberBU459611.5633
Thread Size#4-48
Thread Diameter Size#4
Thread StandardSTI-UNF
Thread per Inch (TPI)48 TPI
Tap Square (Decimal Inch)0.110"
Thread Length (Decimal Inch)0.472"
Overall Length (Decimal Inch)2.205"
Shank Machine Side Connection Diameter (Decimal Inch)0.141"
Thread Tolerance Class3BX
Tap Chamfer2-3 P
Tap Chamfer FormC
Dimensional StandardsDIN/ANSI
Shank Toleranceh9
Flute DirectionRight Hand
Group LengthDIN Length
Coolant Supply PropertyExternal
Coolant FedNo
Number of Flute3
Flute Helix Angle (Degree)15 Degree
Cutting Edge MaterialHSSE
CoatingTICN
Tool TypeRekord D-TI
ApplicationSTI Taps
Product TypeThread Forming STI Tap
