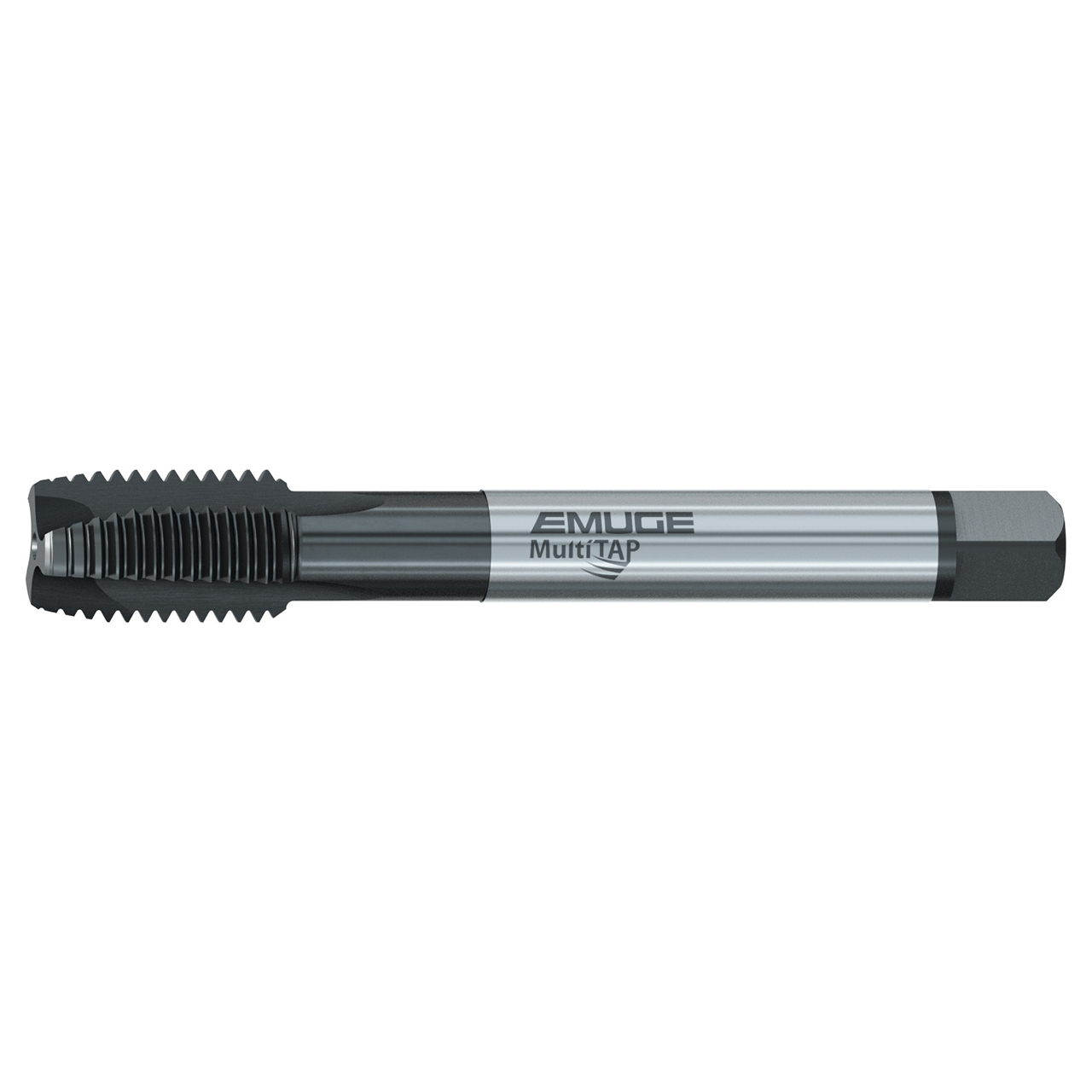

Emuge CU459611.5624 | 3/4"-10 Thread Size x 5.512" OAL 3 Flute TICN Coated Thread Forming STI Tap

Emuge CU459611.5624 | 3/4"-10 Thread Size x 5.512" OAL 3 Flute TICN Coated Thread Forming STI Tap

SKU: 17985300 Weight: 1.23 LBS Minimum Purchase: 1 unit
UPC:
$338.60 $331.83
(You save $6.77)
Shipping: Free Shipping

About This Item

Features:

  • Rekord D-TI tap is a slow spiral design for blind holes
  • Best suited for titanium and high tensile strength materials
  • Spiral point creates tight curled chips that are pushed ahead of the tap
  • DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks

Product Specifications
Manufacturer Part NumberCU459611.5624
Thread Size3/4"-10"
Thread Diameter Size (Inch)3/4"
Thread StandardSTI-UNC
Thread per Inch (TPI)10 TPI
Tap Square (Decimal Inch)0.523"
Thread Length (Decimal Inch)1.260"
Overall Length (Decimal Inch)5.512"
Shank Machine Side Connection Diameter (Decimal Inch)0.697"
Thread Tolerance Class3BX
Tap Chamfer2-3 P
Tap Chamfer FormC
Dimensional StandardsDIN/ANSI
Shank Toleranceh9
Flute DirectionRight Hand
Group LengthDIN Length
Coolant Supply PropertyExternal
Coolant FedNo
Number of Flute3
Flute Helix Angle (Degree)15 Degree
Cutting Edge MaterialHSSE
CoatingTICN
Tool TypeRekord D-TI
ApplicationSTI Taps
Product TypeThread Forming STI Tap
