Features:

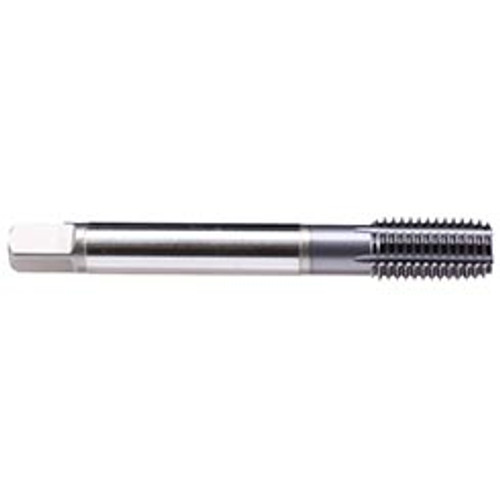

- The Druck Steel roll form tap is a universal design for the chipless production of internal threads, blind and though hole
- Longer tool life and more consistent thread quality
Product Specifications
| Chamfer | 2 -3 P |
| Chamfer Form | C |
| Pitch | 36 |
| Size | 8 |
| Thread Limit | 3BX |
| Thread Standard | STI-UNF |
| Applicable Material | Universal Materials |
| Application | Through and Blind Hole |
| Coolant Fed | No |
| Coating/Finish | TICN |
| Material | HSSE |
| Type | Roll Form - Druck |
| Length Group | DIN Length |
| Helix Angle (Degrees) | 0 Degree |
| Shank Diameter (mm) | 0.168" |
| Dimension Standards | DIN/ANSI |
| Shank Tolerance | h9 |
| Overall Length (mm) | 2.48" |
| Thread Length (mm) | 0.512" |
| Flute Direction | Straight |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Manufacturer
Brand:
Emuge
Thread Size:
8-36
Thread Limit:
3BX
Chamfer:
2 -3 P
Finish/Coating:
TICN
Overall Length (Inch):
2-31/64"
Overall Length (Decimal Inch):
2.4800"
Overall Length (mm):
62.99mm
Thread Standard:
STI-UNF
Thread Length (Inch):
33/64"
Thread Length (Decimal Inch):
0.5120"
Thread Length (mm):
13mm
Shank Diameter (Inch):
11/64"
Shank Diameter (Decimal Inch):
0.1680"
Shank Diameter (mm):
4.27mm
Material:
HSSE
