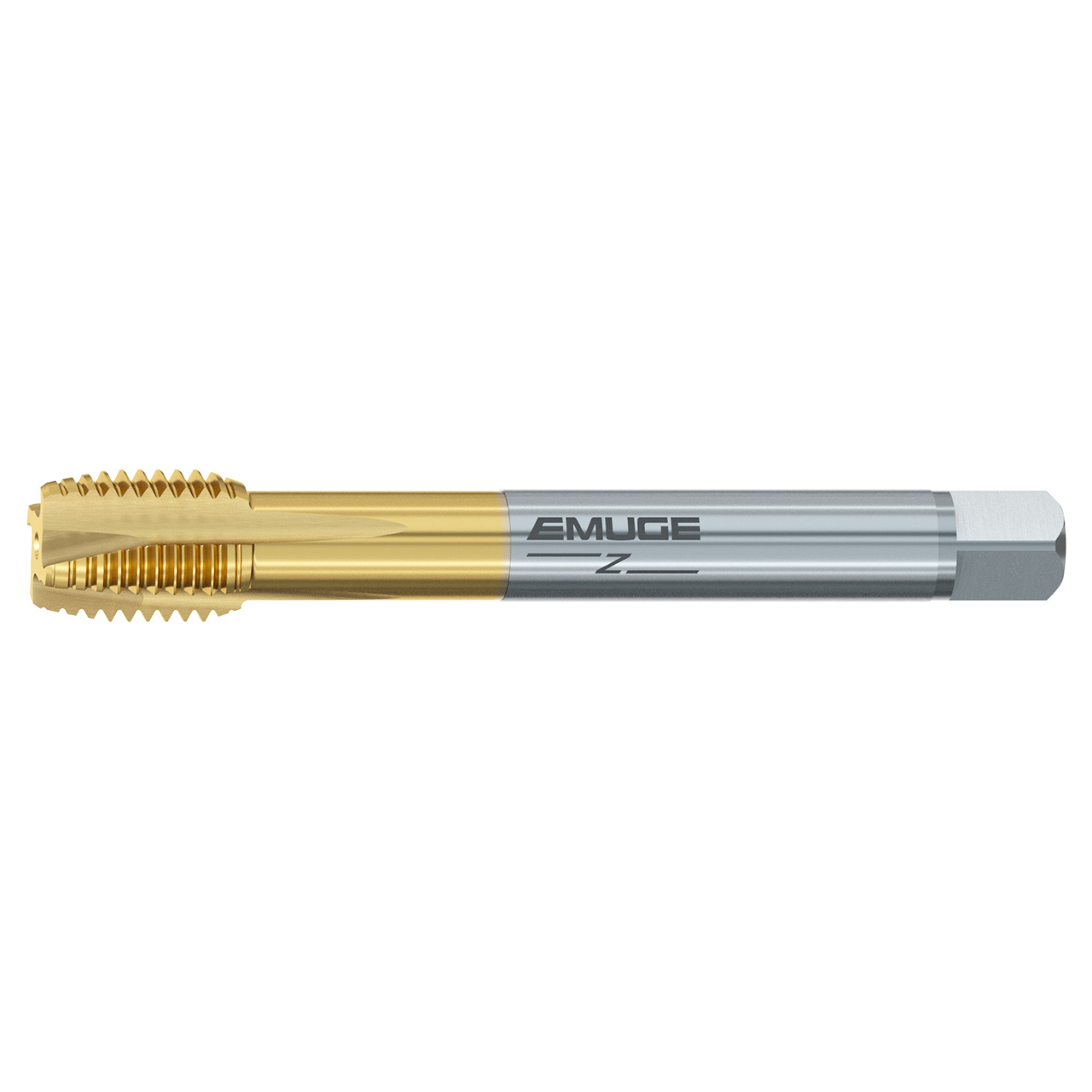

Features:
- Rekord B-Z design is typically for through hole applications in long-chipping materials
- Spiral point creates tight curled chips that are pushed ahead of the tap
- TIN 70 coated for additional heat and wear resistance
- DIN/DIN standard dimensions for overall length and shank size
Product Specifications
| Manufacturer Part Number | C0208F01.0390 |
| Thread Size | M 18x1.5 |
| Thread Diameter Size | M 18 |
| Thread Standard | MF |
| Thread Pitch (mm) | 1.50mm |
| Tap Square (mm) | 11.00mm |
| Thread Length (mm) | 15.00mm |
| Overall Length (mm) | 110.00mm |
| Thread Tolerance Class | 6HX |
| Tap Chamfer | 4-5 P |
| Tap Chamfer Form | B |
| Dimensional Standards | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Group Length | DIN Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 4 |
| Cutting Edge Material | HSSE-PM |
| Coating | TiN-70 |
| Tool Type | Rekord B-Z |
| Application | Spiral Point Taps |
| Product Type | Spiral Point Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Thread Size:
M 18x1.5
Number of Flutes:
4
Thread Standard:
MF
Finish/Coating:
TiN-70
