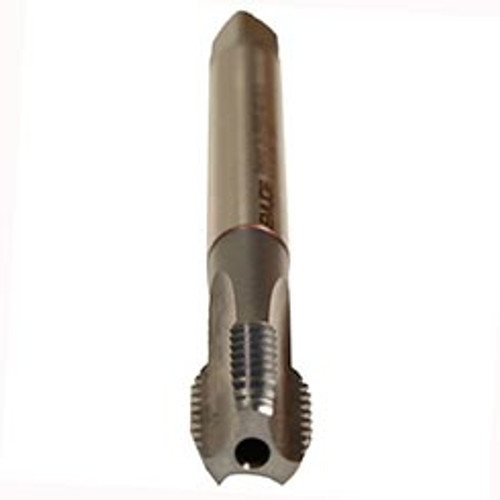

Emuge C1969401.0277 | M10 x 1.25- Tap - Rekord A-Z/E - Coolant - TICN

$127.51
Ships:
From Manufacturer
Ships:
From Manufacturer
Brand:
Emuge
Thread Size:
M10 X 1.25
Thread Limit:
6HX
Overall Length (Inch):
3-15/16"
Overall Length (Decimal Inch):
3.9371"
Overall Length (mm):
100mm
Chamfer:
1.5 -2 P
Material:
HSSE
Finish/Coating:
TiCN
Thread Standard:
MF
SKU:
15041777
Weight:
0.06 LBS
Shipping:
Free Shipping

Features:

  • Rekord A-Z is a straight flute for short chipping materials in through or blind hole applications
  • Longer tool life and more consistent thread quality

Product Specifications
Chamfer1.5 -2 P
Chamfer FormE
Pitch1.25
SizeM 10
Thread Limit6HX
Thread StandardMF
Applicable MaterialShort Chipping Cast Materials
ApplicationThrough and Blind Hole
Coolant FedAxial
Coating/FinishTiCN
MaterialHSSE
TypeRekord A-Z
Length GroupDIN Length
Helix Angle (Degrees)0 Degree
Shank Diameter (mm)7 mm
Dimension StandardsDIN/DIN
Shank Toleranceh9
Overall Length (mm)100 mm
Thread Length (mm)12.5 mm
Flute DirectionStraight
