Features:

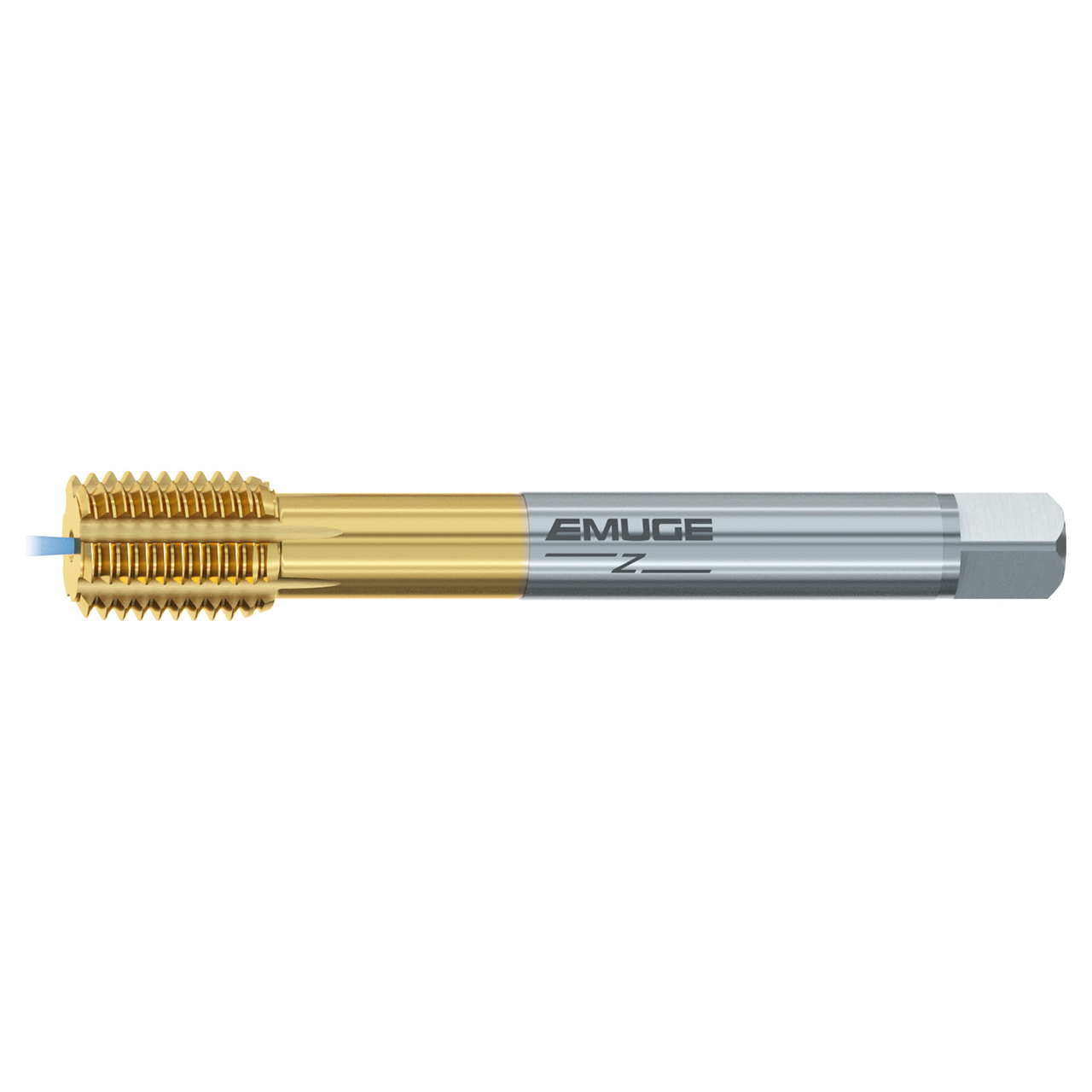

- The InnoForm Z roll form tap is designed for steel, alloyed steel, aluminum and other materials
- Designed for use in CNC-controlled machines
- Axial coolant fed to maximize chip evacuation and improve thread quality
- DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks
Product Specifications
| Manufacturer Part Number | CU44Z700.5012 |
| Thread Size | 7/16"-14" |
| Thread Diameter Size (Inch) | 7/16" |
| Thread Standard | UNC |
| Thread per Inch (TPI) | 14 TPI |
| Tap Square (Decimal Inch) | 0.242" |
| Thread Length (Decimal Inch) | 0.714" |
| Overall Length (Decimal Inch) | 3.937" |
| Shank Machine Side Connection Diameter (Decimal Inch) | 0.323" |
| Thread Tolerance Class | 2BX |
| Tap Chamfer | 1.5-2 P |
| Tap Chamfer Form | E |
| Dimensional Standards | DIN/ANSI |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Group Length | DIN Length |
| Coolant Supply Property | Internal |
| Coolant Fed | Axial |
| Cutting Edge Material | HSSE-PM |
| Coating | TIN-80 |
| Tool Type | InnoForm Z |
| Application | Form Taps |
| Product Type | Thread Forming Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Thread Size:
7/16-14"
Finish/Coating:
TIN-80
Thread Standard:
UNC
