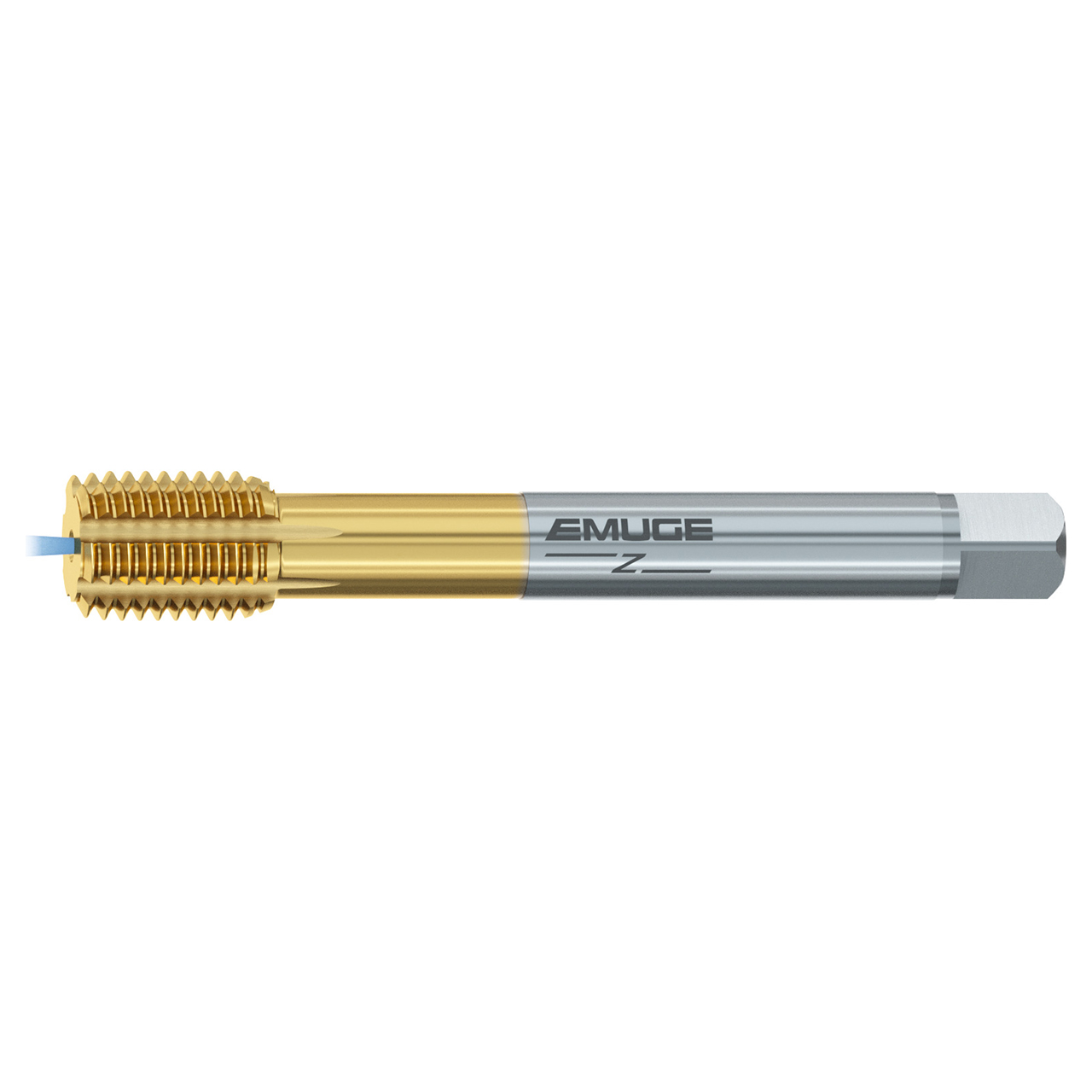

Features:
- The InnoForm Z roll form tap is designed for steel, alloyed steel, aluminum and other materials
- Designed for use in CNC-controlled machines
- Axial coolant fed to maximize chip evacuation and improve thread quality
- DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks
Product Specifications
| Manufacturer Part Number | CU44Z700.5016 |
| Thread Size | 3/4"-10" |
| Thread Diameter Size (Inch) | 3/4" |
| Thread Standard | UNC |
| Thread per Inch (TPI) | 10 TPI |
| Tap Square (Decimal Inch) | 0.442" |
| Thread Length (Decimal Inch) | 1.000" |
| Overall Length (Decimal Inch) | 4.921" |
| Shank Machine Side Connection Diameter (Decimal Inch) | 0.590" |
| Thread Tolerance Class | 2BX |
| Tap Chamfer | 1.5-2 P |
| Tap Chamfer Form | E |
| Dimensional Standards | DIN/ANSI |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Group Length | DIN Length |
| Coolant Supply Property | Internal |
| Coolant Fed | Axial |
| Cutting Edge Material | HSSE-PM |
| Coating | TIN-80 |
| Tool Type | InnoForm Z |
| Application | Form Taps |
| Product Type | Thread Forming Tap |
