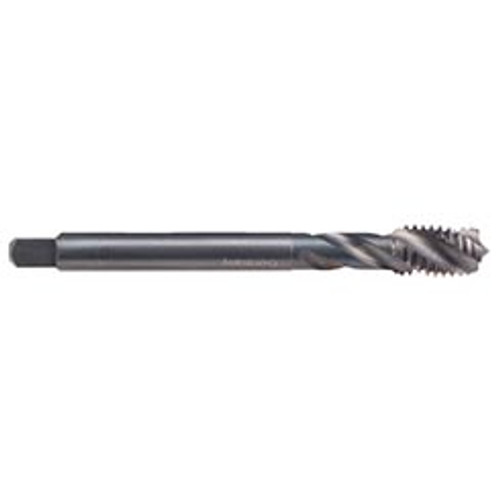

Emuge CU503200.5013 | 1/2-13 -Tap -EnorMVA -Blind Hole

$76.15 $70.52
(You save $5.63)
Ships:
From Manufacturer
Ships:
From Manufacturer
Brand:
Emuge
Thread Size:
1/2"-13
Thread Limit:
2B
Number of Flutes:
3
Chamfer:
2 -3 P
Material:
HSSE
Finish/Coating:
NE2
Flute Direction:
Right Hand
Overall Length (Inch):
4-21/64"
Overall Length (Decimal Inch):
4.3310"
Overall Length (mm):
110.01mm
SKU:
15043470
Weight:
0.12 LBS
Shipping:
Calculated at Checkout

Features:

  • The Enorm VA design is typically for blind hole threads in long chipping materials. The fast spiral flute (35 Degree) provides good chip removal from blind holes
  • Longer tool life and more consistent thread quality

Product Specifications
Chamfer2 -3 P
Chamfer FormC
Pitch13
Size1/2"
Thread Limit2B
Thread StandardUNC
Applicable MaterialAlloyed Steel & Long Chipping Materials
ApplicationBlind Hole
Coolant FedNo
Coating/FinishNE2
MaterialHSSE
TypeEnorm VA
Length GroupDIN Length
Number of Flutes3
Helix Angle (Degrees)35 Degree
Shank Diameter (mm)0.367"
Dimension StandardsDIN/ANSI
Shank Toleranceh9
Overall Length (mm)4.331"
Thread Length (mm)0.984"
Flute DirectionRight Hand
